SpecificationsManufacturer: Schneider Electric SA
Manufacturer Part Number: AP7901B
Manufacturer Website Address: http://www.schneider-electric.com
Brand Name: APC by Schneider Electric

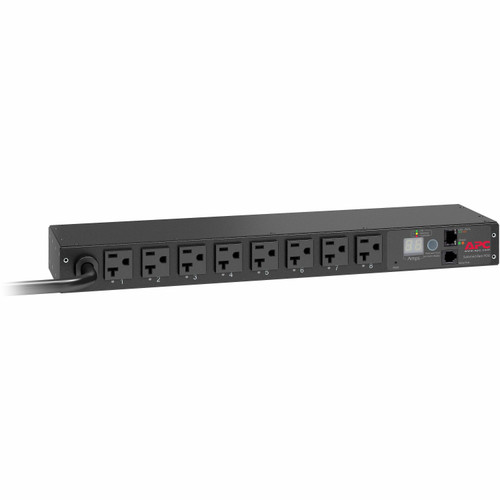

Product Name: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Marketing Information:
Explore APC Rack Power Distribution in 3D animation.APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Product Type: PDU
Technical InformationInput Receptacles: 1 x NEMA L5-20P
Output Receptacles: 8 x NEMA 5-20R
Power DescriptionInput Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (VA): 2400 VA
Input Current: 20 A
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsPlacement: Rack
Rack Height: 1U
Height: 1.7"
Width: 12.3 ft
Depth: 4.3"
Weight (Approximate): 5 lb
MiscellaneousPackage Contents:
- Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
- Cord Retention Vrackets
- Horizontal Mounting Brackets
- Installation Guide
- User Manual
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: 2 Year
