Image may not exactly match the product.

APC

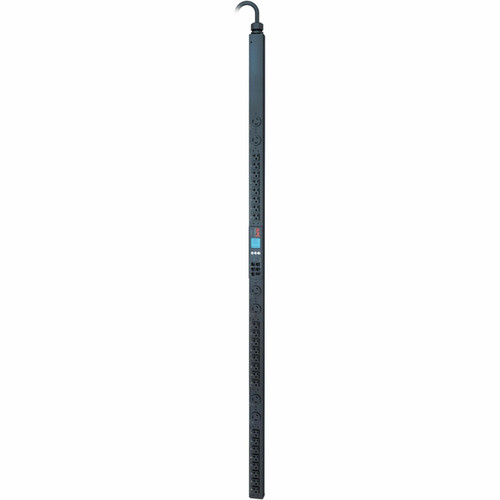

APC Metered Rack PDU 2G - Power Distribution Unit - 5760 VA - AP8863

SKU:
AP8863
Shipping:
Calculated at Checkout
$1,125.00 $708.59
(You save $416.41 )

Image may not exactly match the product.

$1,125.00 $708.59
(You save $416.41 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 2 years
Product Line:
APC Metered Rack PDU
Product Type:
Power distribution unit
Installation Type:
Rack-mountable
Model:
2G
Input Voltage:
AC 208 V
Remote Management Interface:
Ethernet, RS-232, USB
Power Capacity:
5760 VA
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Vertical mounting capabilities
    It easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
  • Remote management capabilities
    Full-featured network management interfaces provide standards-based management via Web, SNMP, and Telnet. It allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
  • Load indicator LED
    It indicates overload and warning conditions based on the user-defined alarm thresholds and alerts users of potential overloaded circuits.
  • Rack-mountable
    It includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
  • Single input power source
    Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. It saves time and money during installation by using one branch whip and standard connections.
  • Wide range of input and output connections
    Product family includes a variety of input and output connections, which allow users to adapt to varying power requirements.

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow data center managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specs Overview

  • Product Description
    APC Metered Rack PDU 2G - power distribution unit - 5760 VA
  • Device Type
    Power distribution unit - rack-mountable
  • Rack Size
    0U
  • Weight
    14.51 lbs
  • Input Wiring
    3-phase
  • Input Voltage
    AC 208 V
  • Output Voltage
    AC 120/208 V
  • Power Capacity
    5760 VA
  • Input Connectors
    1 x power NEMA L21-20
  • Output connectors
    24 x power NEMA 5-20 6 x power NEMA L6-20
  • Networking
    Ethernet, RS-232, USB
  • Remote Management Protocol
    SNMP, Telnet, HTTP
  • Color
    Black
  • Dimensions (WxDxH)
    2.2 in x 1.7 in x 72 in
  • Manufacturer Warranty
    2-year warranty
  • Designed For
    P/N: AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX3000HVTUS, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SRT1000RMXLI, SRT10RMXLIX806, SRT5KRMXLTUS, SRT5KRMXLW-TW

Detailed Specs
