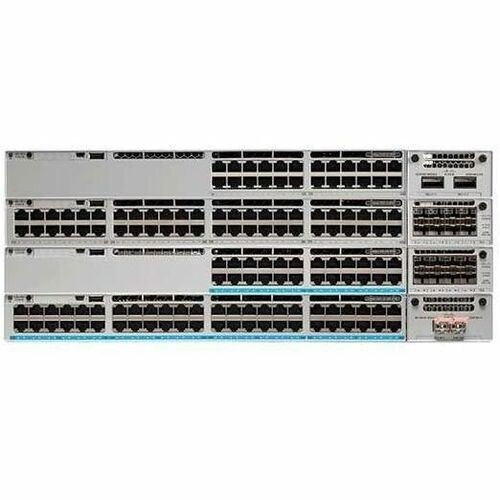

Image may not exactly match the product.

Meraki

Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise

SKU:
C9300X-12Y-M
Shipping:
Calculated at Checkout
$20,109.05 $13,179.47
(You save $6,929.58 )

Image may not exactly match the product.

$20,109.05 $13,179.47
(You save $6,929.58 )
Availability:
This product is currently only available for pre-order

Condition:
New
View More

RESERVE YOURS - SHIPPING SOON! Item is back-ordered globally across all suppliers, expected to return approx. 6/5/2025. Pre-ordering now from us secures your place in line for the earliest shipment.

warning
Currently available for Pre-Order only

Check details for availability or request a quote

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks, Meraki Advance or Enterprise

Specs Overview

  • Product Description
    Cisco Meraki Catalyst 9300X-12Y - switch - 12 ports - managed - rack-mountable
  • Device Type
    Switch - 12 ports - L3 - managed - stackable
  • Enclosure Type
    Rack-mountable 1U
  • Subtype
    25 Gigabit Ethernet
  • Ports
    12 x 1/10/25 Gigabit SFP28
  • Performance
    Switching capacity: 1000 Gbps Forwarding rate: 744.04 Mpps Stacking bandwidth: 1 Tbps
  • Capacity
    Priority queues: 8 Maximum number of VLANs: 4094 Active VLANs: 1000 Link aggregation ports: 8
  • MAC Address Table Size
    32000 entries
  • Routing Protocol
    VRRP, OSPFv2, static IP routing, STP
  • Remote Management Protocol
    SNMP, DHCP, IPv4, IPv6, Syslog
  • Features
    VLAN support, IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, DHCP snooping, QoS, DHCP server, DAI, UDLD, DHCP relay, Port Security, Multicast filtering function, Cisco StackPower technology, 802.1x authentication, 3 fans, RBAC, push notification, Root Guard, Loop Guard, ZTP, MAB, BPDU Guard, VLAN trunking, CDP, Multicast routing, DSCP to CoS mapping
  • Compliant Standards
    IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
  • Power
    AC
  • Power Redundancy
    Yes
  • Dimensions (WxDxH)
    17.5 in x 19.2 in x 1.7 in
  • Weight
    14.99 lbs
  • Manufacturer Warranty
    Limited lifetime warranty

Detailed Specs
