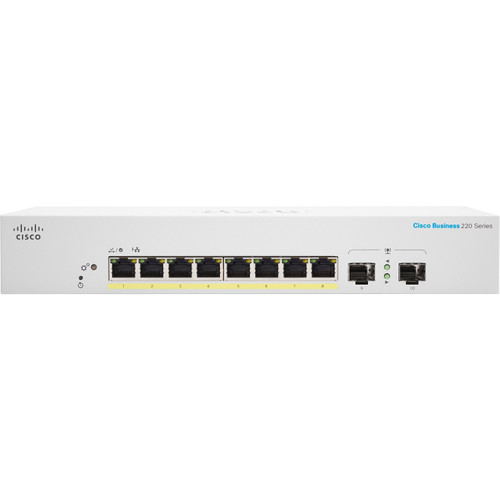

Cisco Business 220 Series CBS220-8P-E-2G Ethernet Switch
Product Overview
The Cisco Business 220 Series CBS220-8P-E-2G is a smart and flexible Ethernet switch designed specifically for small to medium-sized businesses. This rack-mountable model includes 8 Gigabit Ethernet PoE ports and 2 Gigabit SFP uplink slots, providing robust connectivity and power for network devices.
Technical Specifications
- Product Type: Ethernet Switch
- Brand Name: Cisco
- Product Series: 220
- Product Model: CBS220-8P-E-2G
- Form Factor: Rack-mountable
- Dimensions: Height: 1.7 inches, Width: 11 inches, Depth: 6.7 inches
- Weight: Approximately 2.60 lb
Interfaces/Ports
- Total Number of Network Ports: 8
- Network (RJ-45): Yes
- Uplink Port: Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE
- 2 x Gigabit Ethernet Expansion Slot
- PoE (RJ-45) Port: Yes
- PoE Budget: 65 W
Media & Performance
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T (Twisted Pair)
- 1000Base-X (Optical Fiber)
- Media Type Supported: Optical Fiber, Twisted Pair
I/O Expansions
- Number of Total Expansion Slots: 2
- Expansion Slot Type: SFP (mini-GBIC)
- Number of SFP Slots: 2
Power Description
- Power Source: Power Adapter
- Power Consumption: 8.20 W
- Frequency: 50 Hz, 60 Hz
Management & Protocols
- Manageable: Yes
- Layer Supported: 2
Package Contents
- Business CBS220-8P-E-2G Ethernet Switch
- Adaptor
- Mounting Kit
- Quick Start Guide
Additional Features
- Environmentally Friendly: Yes
- Country of Origin: China
- Warranty: 3-Year Limited Warranty
Manufacturer Information
- Manufacturer: Cisco Systems, Inc
- Manufacturer Part Number: CBS220-8P-E-2G-NA
Description
The Cisco Business 220 Series CBS220-8P-E-2G Ethernet Switch delivers advanced capabilities such as PoE (Power over Ethernet) with a 65 W budget to support wireless access points and surveillance cameras over a single network cable. This switch offers a total of 8 Gigabit Ethernet ports with PoE support, allowing for flexible installations and reduced cable clutter. Its two SFP slots enhance network flexibility and scalability, accommodating fiber connections for long-distance links.
With its manageable capabilities, the CBS220-8P-E-2G allows for simplified configuration and management, making it an ideal solution for businesses looking for a combination of performance, efficiency, and ease of use. The environmental friendliness and compliance with multiple regulatory standards ensure that this switch is not only powerful but also a responsible choice for a modern business infrastructure.
