Image may not exactly match the product.

Cisco

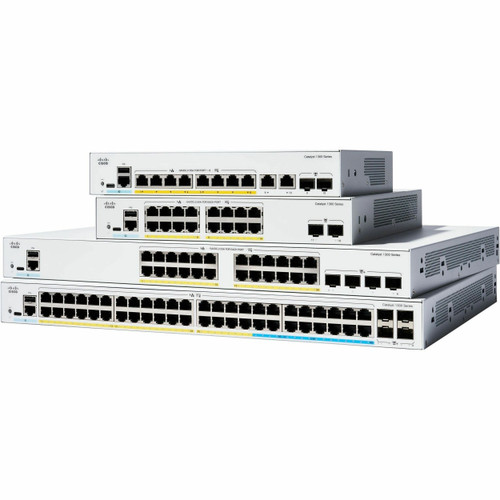

Cisco Catalyst 1300-24FP-4X - Switch - L3 - Managed - 24 X 10/100/1000 (PoE+) + 4 X 10 Gigabit SFP+ - Rack-mountable - PoE+ (375 W) - C1300-24FP-4X

SKU:
C1300-24FP-4X
Shipping:
Calculated at Checkout
$1,692.43 $1,235.88
(You save $456.55 )

Image may not exactly match the product.

$1,692.43 $1,235.88
(You save $456.55 )
Availability:
This product is currently only available for pre-order

Condition:
New
Warranty Information
Limited Warranty - lifetime - response time: next business day
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Cisco Catalyst
Model:
1300-24FP-4X
Family:
Gigabit Ethernet
Ports Qty:
24
Managed:
Yes
PoE Support:
PoE+
Stackability:
Stackable
View More

PRE-ORDER ONLY - CURRENTLY ON BACK-ORDER: Product is estimated to return in stock approximately 3/18/2025. Product may ship Earlier or Later than approximate date. Contact Us for Realtime Updates.

warning
Currently available for Pre-Order only

Check details for availability or request a quote

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • SWITCH PORTS
    24 ports 10/100/1000 + 4x 10GE SFP+ (total PoE power budget: 375W, PoE, PoE+)
  • SIMPLE
    Intuitive Cisco Business mobile app, local web interface, and Cisco Business Dashboard allows you to set up, manage, and monitor the switch, with step-by-step instructions to install and configure your network in minutes - no IT expertise required
  • ENHANCED SECURITY
    IP-MAC port binding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
  • ENERGY EFFICIENT
    Optimizes power usage to lower operational cost. Compliant with IEEE 802.3az Energy Efficient Ethernet. Fanless in select models
  • PERFECT FOR SMALL BUSINESS
    Requires no subscription or licenses to use, and offers limited lifetime hardware warranty with complimentary 1-year technical support

The Cisco Catalyst 1300-24FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support.

Specs Overview

  • Product Description
    Cisco Catalyst 1300-24FP-4X - switch - 24 ports - managed - rack-mountable
  • Device Type
    Switch - 24 ports - L3 - managed - stackable
  • Enclosure Type
    Rack-mountable
  • Subtype
    Gigabit Ethernet
  • Ports
    24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • Power Over Ethernet (PoE)
    PoE+
  • PoE Budget
    375 W
  • Performance
    Forwarding rate (64‑byte packets): 95.23 Mpps Switching capacity: 128 Gbps
  • Capacity
    MSTP instances: 8 RPVST+ instances: 126 Link aggregation groups: 8 Link aggregation ports: 8 VLAN IDs: 4093 IGMP multicast groups: 2000 IPv4 routes (static): up to 990 IPv4 interfaces: 128 ACL rules: 1024 Priority queues: 8 Packet buffer size: 1.5 MB
  • MAC Address Table Size
    16000 entries
  • Jumbo Frame Support
    9000 bytes
  • Routing Protocol
    RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
  • Remote Management Protocol
    SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
  • Features
    BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
  • Power
    AC 100-240 V (50 - 60 Hz)
  • Dimensions (WxDxH)
    17.5 in x 13.6 in x 1.7 in
  • Weight
    10.14 lbs
  • Manufacturer Warranty
    Limited lifetime warranty

Detailed Specs
