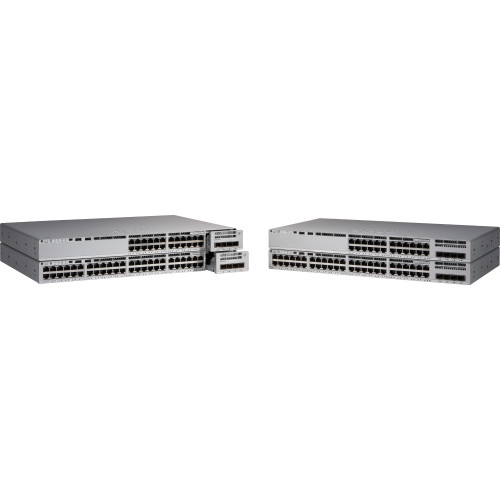

Image may not exactly match the product.

Cisco

Cisco Catalyst 9200L - Network Advantage - Switch - L3 - Managed - 8 X 100/1000/2.5G/5G/10GBase-T + 16 X 10/100/1000 (PoE+) + 2 X 25 Gigabit Ethernet - Rack-mountable - PoE+ (370 W) - C9200L-24PXG-2Y-A

SKU:
C9200L-24PXG-2Y-A
Shipping:
Calculated at Checkout
$8,269.14 $6,081.35
(You save $2,187.79 )

Image may not exactly match the product.

$8,269.14 $6,081.35
(You save $2,187.79 )
Availability:
This product is currently only available for pre-order

Condition:
New
Warranty Information
Limited Warranty - replacement - lifetime - response time: next business day
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Cisco Catalyst
Model:
9200L
Family:
Gigabit Ethernet
Ports Qty:
24
Managed:
Yes
PoE Support:
PoE+
Stackability:
Stackable
View More

PRE-ORDER ONLY - CURRENTLY ON BACK-ORDER: Product is estimated to return in stock approximately 2/25/2025. Product may ship Earlier or Later than approximate date. Contact Us for Realtime Updates.

warning
Currently available for Pre-Order only

Check details for availability or request a quote

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-24PXG-2Y-E model has 8 mGig ports, 16 ports 1G PoE+ with 2x 25G SFP28 fixed uplinks. Cisco DNA Advantage subscription licensing is required at time of purchase.

Specs Overview

  • Product Description
    Cisco Catalyst 9200L - Network Advantage - switch - 24 ports - managed - rack-mountable
  • Device Type
    Switch - 24 ports - L3 - managed - stackable
  • Enclosure Type
    Rack-mountable
  • Subtype
    Gigabit Ethernet
  • Ports
    8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 2 x 25 Gigabit Ethernet
  • Power Over Ethernet (PoE)
    PoE+
  • PoE Budget
    370 W
  • Performance
    Stacking bandwidth: 80 Gbps Switching capacity: 292 Gbps Switching capacity with stacking: 327 Gbps Forwarding rate: 229.16 Mpps
  • Capacity
    Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB
  • MAC Address Table Size
    16000 entries
  • Jumbo Frame Support
    9198 bytes
  • Routing Protocol
    OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
  • Remote Management Protocol
    SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG
  • Features
    ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
  • Power
    AC 100-240 V (50 - 60 Hz)
  • Power Redundancy
    Optional
  • Dimensions (WxDxH)
    17.5 in x 1.7 in x 13.8 in
  • Weight
    11.99 lbs
  • Manufacturer Warranty
    Limited lifetime warranty
