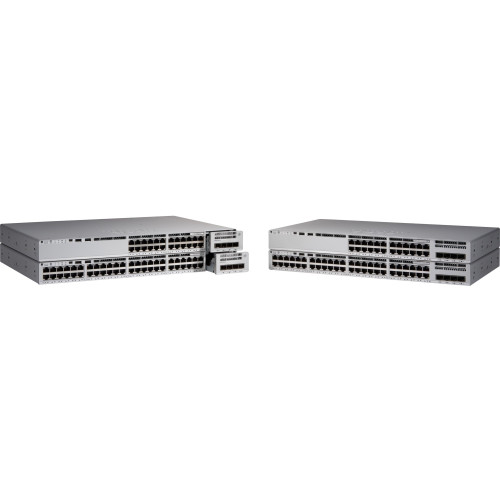

Cisco Catalyst 9200L - Network Advantage - Switch - L3 - Managed - 8 X 100/1000/2.5G/5G/10GBase-T + 16 X 10/100/1000 (PoE+) + 4 X 10 Gigabit SFP+ (uplink) - Rack-mountable - PoE+ (370 W) - C9200L-24PXG-4X-A
- SKU:
- C9200L-24PXG-4X-A
- Shipping:
- Calculated at Checkout
$7,645.04
$5,622.53
(You save
$2,022.51
)
Image may not exactly match the product.
$7,645.04
$5,622.53
(You save
$2,022.51
)
-
Access a Personal IT Concierge
One reliable and responsive point of contact to help guide you along the way. Free. Apply today. -
20+ Years Experience Helping IT Heroes
Take advantage of 20+ years of expertise from a partner with available resources for large deployments, multi-site projects, and complex IT initiatives. We have the team to get the job done. -
Free Solution Design With White Glove Engineers
Solutions architects and project engineers will help you envision a successful outcome and give you personalized recommendations based on your unique needs. Free. Apply today. -
Configuration & Installation Services
Let us take care of configuring and installing your equipment so you can get back to business. Available nationwide. Apply today. -
Equipment Trade-In Program
Refreshing old hardware? Let us coordinate the recycling or destruction in an environmentally friendly and safe manner. As a bonus, working with us gives you access to specific trade-in discounts towards your network refresh. Apply today. -
Exclusive Incentives, Special Pricing, & Financing
After helping you build and validate your solution, we’ll include any applicable discounts, financing, and incentives applied to your project to guarantee you get the most value out of your IT investments through Hummingbird Networks. Apply today.
Out of Stock.
Request a quote for re-stock information.
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Hear What Our Customers Are Saying
-
Access a Personal IT Concierge
One reliable and responsive point of contact to help guide you along the way. Free. Apply today. -
20+ Years Experience Helping IT Heroes
Take advantage of 20+ years of expertise from a partner with available resources for large deployments, multi-site projects, and complex IT initiatives. We have the team to get the job done. -
Free Solution Design With White Glove Engineers
Solutions architects and project engineers will help you envision a successful outcome and give you personalized recommendations based on your unique needs. Free. Apply today. -
Configuration & Installation Services
Let us take care of configuring and installing your equipment so you can get back to business. Available nationwide. Apply today. -
Equipment Trade-In Program
Refreshing old hardware? Let us coordinate the recycling or destruction in an environmentally friendly and safe manner. As a bonus, working with us gives you access to specific trade-in discounts towards your network refresh. Apply today. -
Exclusive Incentives, Special Pricing, & Financing
After helping you build and validate your solution, we’ll include any applicable discounts, financing, and incentives applied to your project to guarantee you get the most value out of your IT investments through Hummingbird Networks. Apply today.
The Cisco Catalyst 9200 Series switch can help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise. This switch provides security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. The C9200L-24PXG-4X-E model has 8 mGig ports, 16 ports 1G PoE+ with 4x 10G SFP+ fixed uplinks. Cisco DNA Advantage subscription licensing is required at time of purchase.
| Product Description | Cisco Catalyst 9200L - Network Advantage - switch - 24 ports - managed - rack-mountable |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance |
Stacking bandwidth: 80 Gbps
Switching capacity: 272 Gbps Switching capacity with stacking: 352 Gbps Forwarding rate: 214.28 Mpps |
| Capacity |
Virtual networks: 1
IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
| Features | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
| Power | AC 100-240 V (50 - 60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 17.5 in x 1.7 in x 13.8 in |
| Weight | 11.99 lbs |
| Manufacturer Warranty | Limited lifetime warranty |
General
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G/5G/10GBase-T + 16 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 370 W |
| Performance |
Stacking bandwidth: 80 Gbps
Switching capacity: 272 Gbps Switching capacity with stacking: 352 Gbps Forwarding rate: 214.28 Mpps |
| Capacity |
Virtual networks: 1
IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG |
| Encryption Algorithm | 128-bit AES |
| Features | ARP support, STP support, QoS, Rapid PVST+, SRR, PXE support, RSPAN, Energy Efficient Ethernet, MIB, VRF, CoS, FNF, DSCP support, MACsec support, CoPP, VXLAN, LISP, SPAN, SGT caching, EEM, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz |
| RAM | 2 GB |
| Flash Memory | 4 GB |
Expansion / Connectivity
| Interfaces |
8 x 100/1000/2.5G/5G/10GBase-T RJ-45
16 x 1000Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console RJ-45 |
Power
| Power Device | Internal power supply - hot-plug |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Power Provided | 600 Watt |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
Miscellaneous
| MTBF | 379,410 hours |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Dimensions & Weight
| Width | 17.5 in |
| Depth | 1.7 in |
| Height | 13.8 in |
| Weight | 11.99 lbs |
Manufacturer Warranty
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days |
Environmental Parameters
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% (non-condensing) |
