Cisco

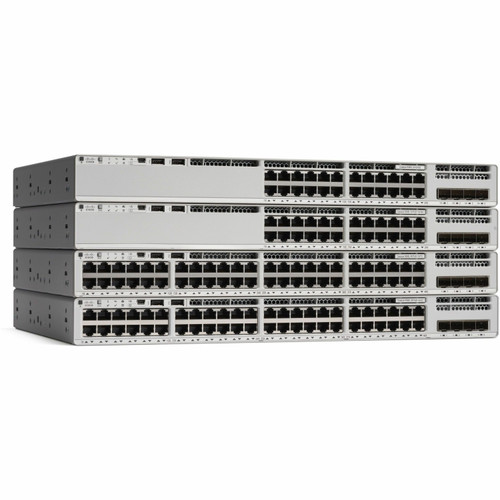

Cisco Catalyst 9200L - Network Essentials - Switch - L3 - Managed - 24 X 10/100/1000 (PoE+) + 4 X 10 Gigabit SFP+ (uplink) - Rack-mountable - PoE+ (370 W) - C9200L-24P-4X-1E

SKU:
C9200L-24P-4X-1E
Shipping:
Calculated at Checkout
$4,780.79 $3,515.96
(You save $1,264.83 )

Image may not exactly match the product.

$4,780.79 $3,515.96
(You save $1,264.83 )
Availability:
This product is currently only available for pre-order

Condition:
New
Warranty Information
Limited Warranty - replacement - lifetime - response time: next business day
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Cisco Catalyst
Model:
9200L
Family:
Gigabit Ethernet
Ports Qty:
24
Managed:
Yes
PoE Support:
PoE+
Stackability:
Stackable
View More

PRE-ORDER ONLY - CURRENTLY ON BACK-ORDER: Product is estimated to return in stock approximately 3/11/2025. Product may ship Earlier or Later than approximate date. Contact Us for Realtime Updates.

warning
Currently available for Pre-Order only

Check details for availability or request a quote

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
Cisco Catalyst 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise - it is secure, always on, and IT simplified. As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations. With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry's unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access.

Specs Overview

  • Product Description
    Cisco Catalyst 9200L - Network Essentials - switch - 24 ports - managed - rack-mountable
  • Device Type
    Switch - 24 ports - L3 - managed - stackable
  • Enclosure Type
    Rack-mountable
  • Subtype
    Gigabit Ethernet
  • Ports
    24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink)
  • Power Over Ethernet (PoE)
    PoE+
  • PoE Budget
    370 W
  • Performance
    Stacking bandwidth: 80 Gbps Switching capacity: 128 Gbps Switching capacity with stacking: 208 Gbps Forwarding rate: 95.23 Mpps
  • Capacity
    Virtual networks: 1 IPv4 routes: 11000 IPv4 routing table entries: 3000 IPv6 routing table entries: 1500 Multicast scale: 1000 ACL scale entries: 1500 FNF entries: 16000 VLANs supported: 1024 Switched virtual interfaces (SVIs): 512 QoS hardware queues per port: 8 Packet buffer size: 6 MB
  • MAC Address Table Size
    16000 entries
  • Jumbo Frame Support
    9198 bytes
  • Routing Protocol
    OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
  • Remote Management Protocol
    SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, IPv4, IPv6, YANG
  • Features
    ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco StackWise-80 technology, Cisco Trust Anchor module, Cisco UADP 2.0
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3bz
  • Power
    AC 100-240 V (50 - 60 Hz)
  • Power Redundancy
    Optional
  • Dimensions (WxDxH)
    17.5 in x 1.7 in x 11.3 in
  • Weight
    10.38 lbs
  • Manufacturer Warranty
    Limited lifetime warranty

Detailed Specs
