- Cloud ready
Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside. - Optimized for mobility

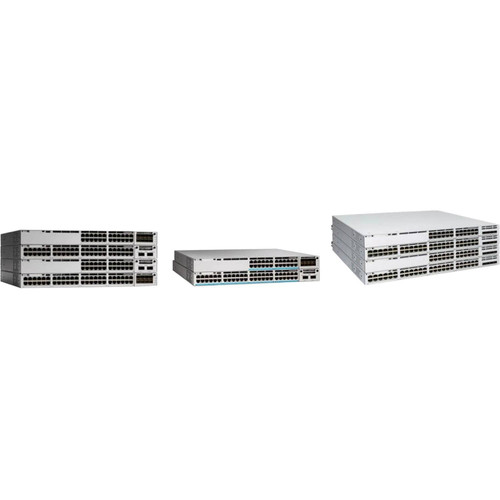

Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.
The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.
Specs Overview
-
- Product Description
- Cisco Catalyst 9300 - Network Advantage - switch - 24 ports - managed - rack-mountable
-
- Device Type
- Switch - 24 ports - L3 - managed - stackable
-
- Enclosure Type
- Rack-mountable 1U
-
- Subtype
- 10 Gigabit Ethernet
-
- Ports
- 24 x 100/1000/2.5G/5G/10GBase-T (UPOE)
-
- Power Over Ethernet (PoE)
- UPOE
-
- PoE Budget
- 560 W
-
- Performance
- Switching capacity: 640 Gbps Switching capacity with stacking: 1.12 Tbps Forwarding rate: 476.19 Mpps Forwarding rate with stacking: 833.33 Mpps
-
- Capacity
- IPv4 routing table entries: 64000 IPv6 routing table entries: 32000 Flexible NetFlow entries: 256000 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 2000 QoS scale entries: 18000 ACL scale entries: 18000
-
- MAC Address Table Size
- 64K entries
-
- Jumbo Frame Support
- 9198 bytes
-
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
-
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
-
- Features
- Trunking, full duplex mode, WRED, STP support, ACL support, QoS, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, FTP client, 3 fans, CoPP, 64MB packet buffer, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN
-
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
-
- Power
- AC 120/230 V (50 - 60 Hz)
-
- Power Redundancy
- Optional
-
- Dimensions (WxDxH)
- 17.5 in x 18.5 in x 1.7 in
-
- Weight
- 18.19 lbs
-
- System Requirements
- Cisco IOS Universal
-
- Manufacturer Warranty
- Limited lifetime warranty
