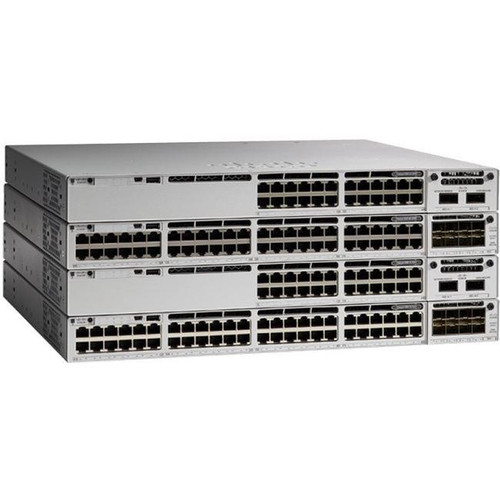

Cisco Catalyst 9300 - Network Advantage - Switch - L3 - Managed - 48 X 10/100/1000 - Rack-mountable - C9300-48T-1A

SKU:
C9300-48T-1A
Shipping:
Calculated at Checkout
$9,415.76 $5,843.42
(You save $3,572.34 )

Image may not exactly match the product.

$9,415.76 $5,843.42
(You save $3,572.34 )
Availability:
This product is currently only available for pre-order

Condition:
New
Warranty Information
Limited Warranty - replacement - lifetime - response time: next business day
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Cisco Catalyst
Model:
9300
Family:
Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
Stackability:
Stackable
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Cloud ready
    Simplify, secure, and transform your cloud environment. Cisco delivers a digital-ready approach that starts at the edge and extends to where applications reside.
  • Optimized for mobility
    Catalyst 9300 series access switches give you smart, simple, and highly secure unified access.

The Catalyst 9300 series is an advanced stackable switching platform. These network switches are built for security, IoT, and the cloud.

Specs Overview

  • Product Description
    Cisco Catalyst 9300 - Network Advantage - switch - 48 ports - managed - rack-mountable
  • Device Type
    Switch - 48 ports - L3 - managed - stackable
  • Enclosure Type
    Rack-mountable 1U
  • Subtype
    Gigabit Ethernet
  • Ports
    48 x 10/100/1000
  • Performance
    Switching capacity: 128 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 190.48 Mpps
  • Capacity
    IPv4 routing table entries: 32000 IPv6 routing table entries: 16000 Flexible NetFlow entries: 64000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 2000 Packet buffer size: 16 MB
  • MAC Address Table Size
    32000 entries
  • Jumbo Frame Support
    9198 bytes
  • Routing Protocol
    OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, Bidirectional PIM, MSDP, policy-based routing (PBR), RIPng, MPLS
  • Remote Management Protocol
    SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
  • Features
    Trunking, full duplex mode, NSF, WRED, STP support, ACL support, QoS, RSPAN, MIB, VRF, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, 802.1x authentication, FTP client, PTP, MACsec support, 3 fans, VTEP support, CoPP, LISP, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), Private VLAN, CoAP support, SGT caching, AVB, GIR mode
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
  • Power
    AC 120/230 V (50 - 60 Hz)
  • Power Redundancy
    Optional
  • Dimensions (WxDxH)
    17.5 in x 17.7 in x 1.7 in
  • Weight
    16.42 lbs
  • Manufacturer Warranty
    Limited lifetime warranty

Detailed Specs
