- USB 2.0 slot to load system images and set configurations
- Easy transition from 10G to 25G with dual-rate optics
- Flexible downlink options with 1G Copper and Fiber as well as the densest Multigigabit links
- Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy
- Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 128,000 flows
- IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
- Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration
- Support for both static and dynamic NAT and Port Address Translation (PAT)
- IEEE 802.1ba AV Bridging (AVB) built in to provide a better audio and video experience through improved time synchronization and QoS
- Precision Time Protocol (PTP; IEEE 1588v2) provides accurate clock synchronization with sub-microsecond accuracy making it suitable for distribution and synchronization of time and frequency over network

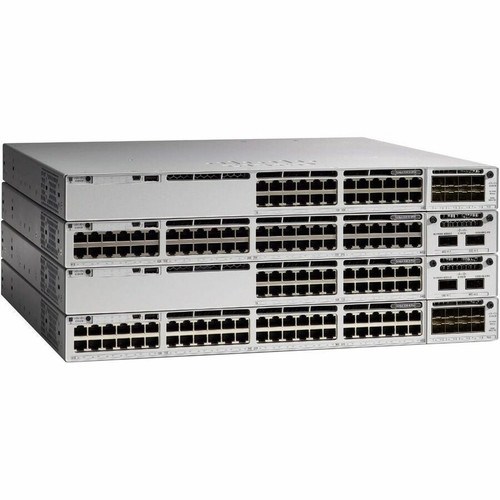

The Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.
Specs Overview
-
- Product Description
- Cisco Catalyst 9300X - Network Essentials - switch - 12 ports - managed - rack-mountable
-
- Device Type
- Switch - 12 ports - L3 - managed - stackable
-
- Enclosure Type
- Rack-mountable 1U
-
- Bundled Services
- 1 year Network Essentials
-
- Subtype
- 25 Gigabit Ethernet
-
- Ports
- 12 x 1/10/25 Gigabit SFP28
-
- Performance
- Switching capacity: 1000 Gbps Switching capacity with stacking: 2000 Gbps Forwarding rate: 744.04 Mpps Forwarding rate with stacking: 1488 Mpps
-
- Capacity
- IPv4 routing table entries: 39000 Flexible NetFlow entries: 64000 Direct IPv4 routes: 24000 Indirect IPv4 routes: 15000 IPv6 routing table entries: 19500 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 1000 Multicast routing flow table: 8000 QoS scale entries: 4000 ACL scale entries: 5000 PVST instances: 300 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 Routed ports: 448
-
- MAC Address Table Size
- 32000 entries
-
- Jumbo Frame Support
- 9198 bytes
-
- Routing Protocol
- OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
-
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
-
- Features
- DHCP support, trunking, Syslog support, full duplex mode, SSO, CBWFQ, WRED, STP support, ACL support, QoS, NSR, RSPAN, MIB, Cisco StackWise-480 technology, Cisco StackPower technology, FNF, MSDP, 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, CoPP, VXLAN, AVC, SSM, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, ERSPAN, SGT caching, SGACL, ITSM integration, third-party IPAM integration, Cisco StackWise-1T technology
-
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
-
- Power
- AC 100-240 V (50/60 Hz)
-
- Dimensions (WxDxH)
- 17.5 in x 16.1 in x 1.7 in
-
- Manufacturer Warranty
- Limited lifetime warranty
