Image may not exactly match the product.

Cisco

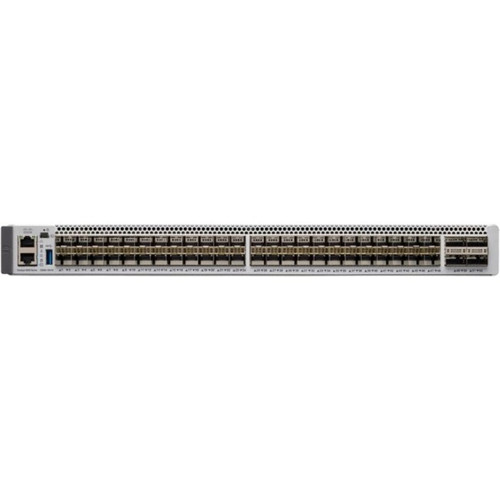

Cisco Catalyst 9500 - Network Advantage - Switch - L3 - Managed - 48 X 25 Gigabit SFP28 - Rack-mountable - C9500-48Y4C-A

SKU:
C9500-48Y4C-A
Shipping:
Calculated at Checkout
$28,637.65 $17,772.53
(You save $10,865.12 )

Image may not exactly match the product.

$28,637.65 $17,772.53
(You save $10,865.12 )
In Stock
In-Stock
Availability:
In Stock. Ships Same Business Day If Ordered Before 3pm PT

Condition:
New
Warranty Information
Limited Warranty - replacement - lifetime - response time: next business day
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Cisco Catalyst
Model:
9500
Family:
25 Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Up to 960-Gbps switching capacity (IPv4) with up to 1440 Mpps of throughput
  • Up to 24 nonblocking 40 Gigabit Ethernet QSFP ports
  • Platinum-rated AC power supplies
  • Up to 512,000 Flexible NetFlow (FNF) entries in hardware
  • Up to 32 MB of shared buffer per ASIC
  • Up to 64,000 routing entries for high-end campus access and aggregation deployments
  • IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
  • Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration
  • Support for both static and dynamic NAT and Port Address Translation (PAT)
  • Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables

The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Specs Overview

  • Product Description
    Cisco Catalyst 9500 - Network Advantage - switch - 48 ports - managed - rack-mountable
  • Device Type
    Switch - 48 ports - L3 - managed
  • Enclosure Type
    Rack-mountable 1U
  • Subtype
    25 Gigabit Ethernet
  • Ports
    48 x 25 Gigabit SFP28
  • Performance
    Switching capacity (full duplex): 3.2 Tbps Forwarding rate: 1 Bpps
  • Capacity
    Routing table entries: 80000 Indirect IPv4 routes: 212000 Host IPv4 routes: 90000 Indirect IPv6 routes: 212000 Host IPv6 routes: 90000 Multicast scale: 32000 QoS ACL scale: 16000 Security ACL scale: 270000 FNF entries: 96000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 4000
  • MAC Address Table Size
    64K entries
  • Jumbo Frame Support
    9198 bytes
  • Routing Protocol
    OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS
  • Remote Management Protocol
    SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP, NETCONF, RESTCONF
  • Features
    DHCP support, NAT support, PAT support, trunking, MPLS support, NSF, SSO, CBWFQ, WRED, STP support, VRRP support, ACL support, QoS, NSR, RSPAN, HSRP support, VRF, MLD, FNF, MSDP, MACsec support, CoPP, integrated Wireshark, VLAN Double Tagging (Q-in-Q), EoMPLS, H-VPLS, Private VLAN, L3VPN support, CoAP support, SPAN
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba
  • Power
    AC 120/230 V (50 - 60 Hz)
  • Power Redundancy
    Optional
  • Dimensions (WxDxH)
    17.5 in x 18 in x 1.7 in
  • Weight
    21.96 lbs
  • Manufacturer Warranty
    Limited lifetime warranty

Detailed Specs
