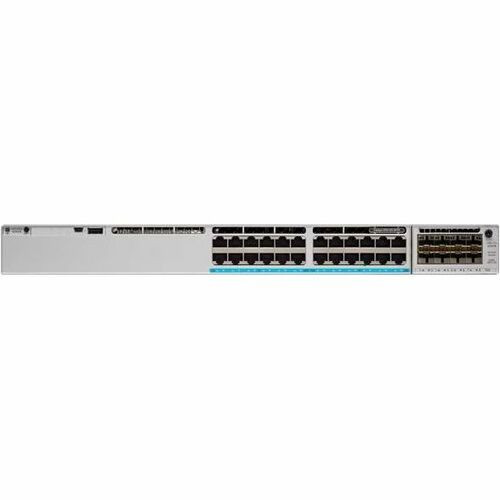

Cisco Catalyst C9300-M 24-port Data-Only Layer 3 Switch - C9300-24T-M

The Cisco Catalyst 9300-24T-M is a high-performance 24-port Gigabit Ethernet switch designed for modern enterprise networks that demand reliability, scalability, and advanced features. Let's delve into its technical specifications and capabilities without resorting to marketing jargon.

Hardware Specifications:

• Port Configuration: The C9300-24T-M offers 24 ports of Gigabit Ethernet connectivity over copper interfaces, making it suitable for various network devices and end-users.
• Modular Uplinks: It features modular uplink slots, allowing for flexible expansion with additional modules for enhanced connectivity options, such as higher-speed fiber interfaces.
• Form Factor: With dimensions of 1.73 inches by 17.5 inches by 17.7 inches (4.4 x 44.5 x 44.9cm), this switch is designed to fit seamlessly into standard 1U rack-mount configurations.
• Weight: Weighing in at 16.03 pounds (7.27 kg), it offers a sturdy build quality while remaining relatively lightweight for ease of installation.
• Rack Mounting: The 1U rack-mount form factor enables efficient space utilization in data center environments and network closets.
• Environmental Conditions: The switch is designed to operate within a temperature range of -5°C to 45°C, ensuring reliable performance even in challenging environmental conditions.
• Humidity Levels: It supports humidity levels ranging from 5% to 90%, making it suitable for deployment in diverse climates and environments.

Performance and Capacity:

• Switching Capacity: With a switching capacity of 208 Gbps, the C9300-24T-M can efficiently handle high volumes of network traffic, ensuring smooth and uninterrupted data transmission.
• Stacking Bandwidth: It offers a stacking bandwidth of 480 Gbps, allowing multiple switches to be interconnected in a stack for enhanced scalability, redundancy, and simplified management.
• Forwarding Rate: The switch boasts a forwarding rate of 154.76 million packets per second (Mpps), enabling rapid packet processing and low-latency performance, ideal for latency-sensitive applications.

Advanced Features and Capabilities:

• Meraki Advance or Enterprise: The C9300-24T-M can be configured with either Meraki Advance or Enterprise licensing options, providing access to a comprehensive suite of advanced features and services tailored to meet the specific needs of your organization.
• Advanced Security: Leveraging features such as role-based access control (RBAC), port security, and IEEE 802.1X authentication, the switch helps enforce stringent security policies and safeguard against unauthorized access and malicious activities.
• Quality of Service (QoS): It supports 802.1p Quality of Service standards and offers eight queues, with six configurable for differentiated services code point (DSCP)-to-class of service (CoS) mapping, allowing for prioritization of mission-critical traffic and optimal resource allocation.
• Layer 3 Functionality: With support for static routing and OSPFv2, the switch enables advanced layer 3 routing capabilities, facilitating efficient traffic routing and network segmentation.
• Management and Monitoring: The switch can be managed via the Cisco Meraki Dashboard, providing a centralized platform for configuration, monitoring, and troubleshooting. Additionally, it offers zero-touch remote provisioning, automatic firmware upgrades, and detailed historical usage statistics for streamlined network management.
• Remote Diagnostics: With built-in diagnostic tools, including email, SMS, and mobile push notification alerts, as well as ping, traceroute, and cable testing capabilities, the switch simplifies troubleshooting and enhances network reliability.
• Stacking and Redundancy: Physically stacking up to eight switches and supporting virtual stacking for thousands of switch ports, the C9300-24T-M offers enhanced scalability, resilience, and faster convergence. StackPower technology ensures simple and resilient power distribution across the stack, further enhancing reliability and uptime.

In conclusion, the Cisco Catalyst 9300-24T-M switch delivers robust performance, advanced features, and scalability to meet the evolving demands of modern enterprise networks. With its versatile design, high-speed connectivity options, and comprehensive management capabilities, it serves as a reliable foundation for building agile and secure network infrastructures.
