Image may not exactly match the product.

Cisco

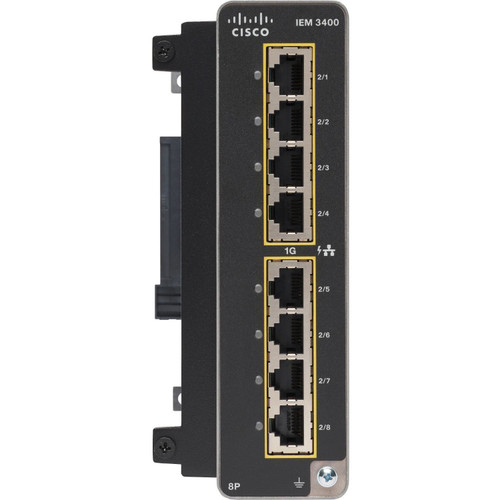

Cisco Catalyst IE3400 Rugged Series Advanced Expansion Module - Expansion Module - Gigabit Ethernet (PoE+) X 8 - IEM-3400-8P=

SKU:
IEM-3400-8P=
Shipping:
Calculated at Checkout
$7,363.46 $4,653.00
(You save $2,710.46 )

Image may not exactly match the product.

$7,363.46 $4,653.00
(You save $2,710.46 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 5 years
Network Protocols:
Gigabit Ethernet
Device Type:
Expansion module
Product Line:
Cisco Catalyst
Connectivity Type:
Wired
Model:
IE3400 Rugged Series Advanced Expansion Module
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Built for harsh environments and wide temperature ranges
  • Fanless, convection-cooled with no moving parts for extended durability
  • Hardened for vibration, shock and surge, and electrical noise immunity
  • Improves uptime, performance, and safety of industrial systems and equipment

The Cisco Catalyst IE3400 Rugged series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.

Specs Overview

  • Product Description
    Cisco Catalyst IE3400 Rugged Series Advanced Expansion Module - expansion module - Gigabit Ethernet (PoE+) x 8
  • Device Type
    Expansion module
  • Form Factor
    DIN rail mountable
  • Ports
    Gigabit Ethernet (PoE+) x 8
  • Dimensions (WxDxH)
    2.4 in x 5.3 in x 6 in
  • Weight
    31.99 oz
  • Cabling Type
    Ethernet 1000Base-T
  • Data Link Protocol
    1GbE
  • Capacity
    IGMP groups: 1000 VLAN IDs: 256 Spanning Tree Protocol instances: 128 ACL: 1500
  • MAC Address Table Size
    8000 entries
  • Network / Transport Protocol
    TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
  • RAM
    4 GB
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
  • Power
    DC 9.6 - 60 V
  • Manufacturer Warranty
    5-year warranty

Detailed Specs
