Cisco

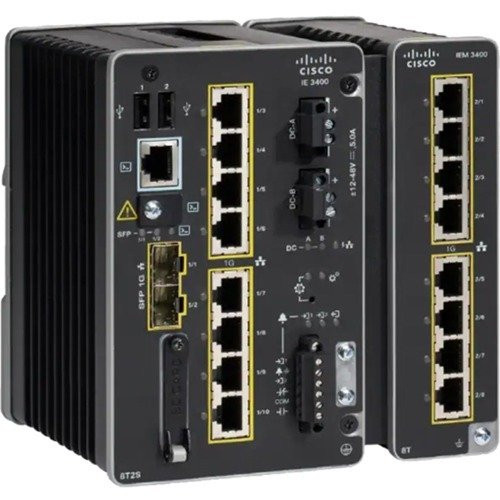

Cisco Catalyst IE3400 Rugged Series Advanced Expansion Module - Expansion Module - Gigabit Ethernet X 8 - For Catalyst IE3400 Rugged Series - IEM-3400-8T=

SKU:
IEM-3400-8T=
Shipping:
Calculated at Checkout
$4,115.38 $2,599.50
(You save $1,515.88 )

Image may not exactly match the product.

$4,115.38 $2,599.50
(You save $1,515.88 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 5 years
Network Protocols:
Gigabit Ethernet
Device Type:
Expansion module
Product Line:
Cisco Catalyst
Connectivity Type:
Wired
Model:
IE3400 Rugged Series Advanced Expansion Module
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 8 to 12 of 50
  • Built for harsh environments and wide temperature ranges
  • Fanless, convection-cooled with no moving parts for extended durability
  • Hardened for vibration, shock and surge, and electrical noise immunity
  • Improves uptime, performance, and safety of industrial systems and equipment

The Cisco Catalyst IE3400 Rugged series ushers in mainstream adoption of Gigabit Ethernet connectivity in a compact, form-factor, modular switch that is purpose-built for a wide variety of extended enterprise and industrial applications.
Product Description Cisco Catalyst IE3400 Rugged Series Advanced Expansion Module - expansion module - Gigabit Ethernet x 8
Device Type Expansion module
Form Factor DIN rail mountable
Ports Gigabit Ethernet x 8
Dimensions (WxDxH) 2.4 in x 5.3 in x 6 in
Weight 31.04 oz
Cabling Type Ethernet 1000Base-T
Data Link Protocol 1GbE
Capacity IGMP groups: 1000
VLAN IDs: 256
Spanning Tree Protocol instances: 128
ACL: 1500
MAC Address Table Size 8000 entries
Network / Transport Protocol TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
RAM 4 GB
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
Power DC 9.6 - 60 V
Manufacturer Warranty 5-year warranty
Designed For Catalyst IE3400 Rugged Series
General
Device Type Expansion module
Form Factor DIN rail mountable
Networking
Ports Gigabit Ethernet x 8
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-T
Data Link Protocol Gigabit Ethernet
Capacity IGMP groups: 1000
VLAN IDs: 256
Spanning Tree Protocol instances: 128
ACL: 1500
MAC Address Table Size 8000 entries
Network / Transport Protocol TCP/IP, UDP/IP, NTP, ARP, FTP, BOOTP, DHCP, HTTP
Remote Management Protocol SNMP 1, SNMP 2, SNMP, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NETCONF, RESTCONF, NTP, ICMP, DHCP, RSTP, YANG, TACACS+, RADIUS
Features IGMP snooping, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, STP support, MSTP support, DHCP snooping, QoS, DHCP server, PVST+, UDLD, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, dynamic ARP protection, static routing, FNF, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, IGMP querier, Voice VLAN, Guest VLAN, SPAN, VTP v.3, BPDU Guard, 802.1x filtering, VTP v.2, EtherChannel support
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2
Processor / Memory
RAM 4 GB
Flash Memory 1.5 GB
Supported Memory Cards SD Memory Card
Expansion / Connectivity
Interfaces 8 x 1000Base-T - RJ-45
Miscellaneous
MTBF 3,385,166 hours
Compliant Standards CISPR 24, EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, IP30, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, EN 55032, EN 60068-2-52, EN 60068-2-60, CISPR 32 Class A, UL 62368-1, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 61000-4-17, CAN/CSA C22.2 No. 213, UL 121201, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15, CSA 62368-1, CB 62368-1
Power
Voltage Required DC 9.6 - 60 V
Power Consumption Operational 12 Watt
Dimensions & Weight
Width 2.4 in
Depth 5.3 in
Height 6 in
Weight 31.04 oz
Manufacturer Warranty
Service & Support Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 158 °F
Humidity Range Operating 5 - 95% (non-condensing)
Compatibility Information
Designed For Cisco Catalyst IE3400 Rugged Series
