Image may not exactly match the product.

Cisco

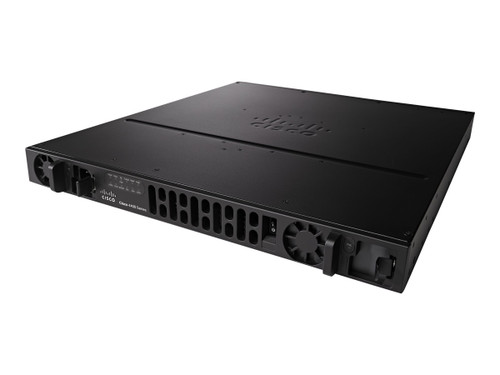

Cisco Integrated Services Router 4431 - Router - GigE - WAN Ports: 4 - Rack-mountable - ISR4431-DNA

SKU:
ISR4431-DNA
Shipping:
Calculated at Checkout
$14,786.06 $8,384.58
(You save $6,401.48 )

Image may not exactly match the product.

$14,786.06 $8,384.58
(You save $6,401.48 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - advance parts replacement - 90 days - response time: 10 days
Network Protocols:
Ethernet, Fast Ethernet, Gigabit Ethernet
Installation Type:
Rack-mountable
Device Type:
Router
Product Line:
Cisco Integrated Services Router
Model:
4431
Color:
Black
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 7 to 11 of 50
  • High performance
    Cisco ISR 4431 features multicore architecture with internal services plane and remote installation of application-aware services, which run identically to their counterparts in dedicated appliances. Backplane architecture supports high-bandwidth module-to-module communication at high speeds.
  • Lower WAN expenditures
    Embedded IWAN solution is designed for creating lower-cost, business-class Internet connections.
  • Superior and secure user application experiences
    Secure boot feature performs hardware-based authentication of the bootloader software to prevent malicious or unintended software from booting on the system. Code signing verifies digital signatures of executables prior to loading to prevent execution of altered or corrupted code. Hardware authentication protects against hardware counterfeiting by using an on-board tamper-proof silicon, including field replaceable modules. If authentication fails, the module is not allowed to boot.
  • IT consolidation, space savings, and improved total cost of ownership (TCO)
    Single converged branch platform integrates routing, switching, virtual server, storage, security, unified communications, WAN optimization, and performance management tools.
  • Business continuity and increased resiliency
    ISR 4431 supports dual integrated power supplies for backup. It features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.

The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.

Specs Overview

  • Product Description
    Cisco Integrated Services Router 4431 - router - rack-mountable
  • Device Type
    Router
  • Enclosure Type
    Rack-mountable - modular - 1U
  • WAN Ports Qty
    4
  • Data Link Protocol
    Ethernet, Fast Ethernet, Gigabit Ethernet
  • Performance
    Aggregate throughput: 500 Mbps
  • Network / Transport Protocol
    IPSec, PPPoE, DHCP
  • Routing Protocol
    OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), IPv4-to-IPv6 Multicast
  • Remote Management Protocol
    SNMP, RMON
  • Features
    VPN support, VLAN support, Syslog support, IPv6 support, CBWFQ, WRED, wall mountable, ACL support, QoS, RADIUS support, NetFlow, IPFIX, DNA support
  • Compliant Standards
    IEEE 802.3, IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824
  • Power
    AC 120/230 V (50/60 Hz)
  • Dimensions (WxDxH)
    17.2 in x 20 in x 1.7 in
  • Weight
    18.52 lbs
  • Manufacturer Warranty
    90-day warranty

Detailed Specs
