Image may not exactly match the product.

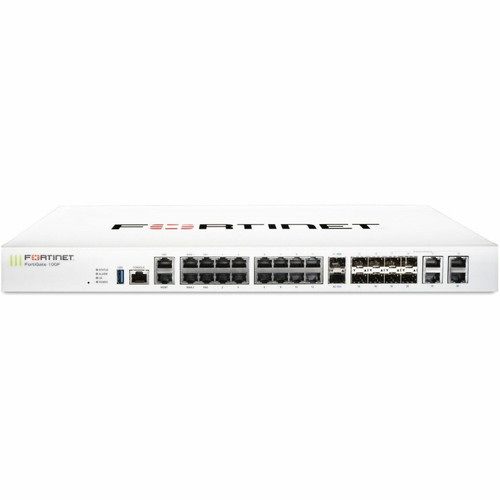

Fortinet FortiGate 100F - Security Appliance - With 3 Years FortiCare Premium Support + 3 Years FortiGuard Enterprise Protection - 10GbE - Side To Back Airflow - 1U - Rack-mountable - FG-100F-BDL-809-36
- SKU:
- FG-100F-BDL-809-36
- Shipping:
- Calculated at Checkout
$5,843.11
Image may not exactly match the product.
$5,843.11
In-Stock
-
Access a Personal IT Concierge
One reliable and responsive point of contact to help guide you along the way. Free. Apply today. -
20+ Years Experience Helping IT Heroes
Take advantage of 20+ years of expertise from a partner with available resources for large deployments, multi-site projects, and complex IT initiatives. We have the team to get the job done. -
Free Solution Design With White Glove Engineers
Solutions architects and project engineers will help you envision a successful outcome and give you personalized recommendations based on your unique needs. Free. Apply today. -
Configuration & Installation Services
Let us take care of configuring and installing your equipment so you can get back to business. Available nationwide. Apply today. -
Equipment Trade-In Program
Refreshing old hardware? Let us coordinate the recycling or destruction in an environmentally friendly and safe manner. As a bonus, working with us gives you access to specific trade-in discounts towards your network refresh. Apply today. -
Exclusive Incentives, Special Pricing, & Financing
After helping you build and validate your solution, we’ll include any applicable discounts, financing, and incentives applied to your project to guarantee you get the most value out of your IT investments through Hummingbird Networks. Apply today.
Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.
Hear What Our Customers Are Saying
-
20+ Years Experience Helping IT Heroes
Take advantage of 20+ years of expertise from a partner with available resources for large deployments, multi-site projects, and complex IT initiatives. We have the team to get the job done. -
20+ Years Experience Helping IT Heroes
Take advantage of 20+ years of expertise from a partner with available resources for large deployments, multi-site projects, and complex IT initiatives. We have the team to get the job done. -
Free Solution Design With White Glove Engineers
Solutions architects and project engineers will help you envision a successful outcome and give you personalized recommendations based on your unique needs. Free. Apply today. -
Configuration & Installation Services
Let us take care of configuring and installing your equipment so you can get back to business. Available nationwide. Apply today. -
Equipment Trade-In Program
Refreshing old hardware? Let us coordinate the recycling or destruction in an environmentally friendly and safe manner. As a bonus, working with us gives you access to specific trade-in discounts towards your network refresh. Apply today. -
Exclusive Incentives, Special Pricing, & Financing
After helping you build and validate your solution, we’ll include any applicable discounts, financing, and incentives applied to your project to guarantee you get the most value out of your IT investments through Hummingbird Networks. Apply today.
- Protects against known exploits, malware and malicious websites using continuous threat intelligence provided by FortiGuard Labs security services
- Identify thousands of applications including cloud applications for deep inspection into network traffic
- Detects unknown attacks using dynamic analysis and provides automated mitigation to stop targeted attacks
- Delivers an extensive routing, switching, wireless controller and high performance IPsec VPN capabilities to consolidate networking and security functionality
- Enables flexible deployment such as Next Generation Firewall and Secure SD-WAN
The FortiGate 100F series delivers next-generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch. Protect against cyber threats with security processor powered high performance, security efficacy and deep visibility.
| Product Description | Fortinet FortiGate 100F - security appliance - with 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Form Factor | Side to back airflow rack-mountable - 1U |
| Processor | 1 x Fortinet FortiASIC SOC4 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance |
IPS throughput: 2.6 Gbps
NGFW throughput: 1.6 Gbps Threat protection throughput: 1 Gbps Firewall throughput (1518-byte UDP): 20 Gbps Firewall throughput (512-byte UDP): 18 Gbps Firewall throughput (64-byte UDP): 10 Gbps Firewall latency (64-byte UDP): 4.97 µs Firewall throughput: 15 Mpps VPN throughput (512-bit IPSec): 11.5 Gbps VPN throughput (SSL): 1 Gbps SSL inspection throughput: 1 Gbps Application control throughput: 2.2 Gbps CAPWAP throughput: 15 Gbps |
| Capacity |
Concurrent TCP sessions: 1500000
New TCP sessions per second: 56000 Firewall policies: 10000 Gateway to gateway IPSec VPN Tunnels: 2000 Client to gateway IPSec VPN tunnels: 16000 Concurrent SSL VPN users: 500 SSL inspection CPS: 1800 SSL inspection concurrent sessions: 135000 Virtual domains: 10 Maximum virtual domains: 10 Number of FortiSwitches: 32 Number of FortiAP devices: 128 Number of FortiAP devices (tunnel): 64 Number of FortiToken devices: 5000 |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17 in x 10 in x 1.7 in |
| Weight | 7.25 lbs |
General
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Height (Rack Units) | 1U |
| Width | 17 in |
| Depth | 10 in |
| Height | 1.7 in |
| Weight | 7.25 lbs |
Processor / Memory / Storage
| Processors Installed | 1 x Fortinet FortiASIC SOC4 |
Networking
| Form Factor | Rack-mountable |
| Airflow Direction | Side to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6 |
| Remote Management Protocol | HTTP, HTTPS |
| Performance |
IPS throughput: 2.6 Gbps
NGFW throughput: 1.6 Gbps Threat protection throughput: 1 Gbps Firewall throughput (1518-byte UDP): 20 Gbps Firewall throughput (512-byte UDP): 18 Gbps Firewall throughput (64-byte UDP): 10 Gbps Firewall latency (64-byte UDP): 4.97 µs Firewall throughput: 15 Mpps VPN throughput (512-bit IPSec): 11.5 Gbps VPN throughput (SSL): 1 Gbps SSL inspection throughput: 1 Gbps Application control throughput: 2.2 Gbps CAPWAP throughput: 15 Gbps |
| Capacity |
Concurrent TCP sessions: 1500000
New TCP sessions per second: 56000 Firewall policies: 10000 Gateway to gateway IPSec VPN Tunnels: 2000 Client to gateway IPSec VPN tunnels: 16000 Concurrent SSL VPN users: 500 SSL inspection CPS: 1800 SSL inspection concurrent sessions: 135000 Virtual domains: 10 Maximum virtual domains: 10 Number of FortiSwitches: 32 Number of FortiAP devices: 128 Number of FortiAP devices (tunnel): 64 Number of FortiToken devices: 5000 |
| Status Indicators | Power, status, alarm, HA |
| Features | VPN support, CAPWAP support, SSL inspection, SD-WAN support |
| Encryption Algorithm | SSL, 256-bit AES, 256-bit SHA, TLS 1.3 |
Expansion / Connectivity
| Interfaces |
1 x USB 3.0 - Type A
1 x console - RJ-45 1 x 1000Base-T (management) - RJ-45 1 x 1000Base-T - RJ-45 (DMZ) 2 x 1000Base-T - RJ-45 (WAN) 2 x 1000Base-T (HA) - RJ-45 12 x 1000Base-T - RJ-45 2 x 10GBase-X (FortiLink) - SFP+ 4 x 1000Base-X - SFP 4 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) |
Miscellaneous
| Compliant Standards | UL, VCCI, BSMI, cUL, CB, FCC Part 15 B Class A, RCM, USGv6, IPv6 |
Power
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 26.5 Watt |
| 80 PLUS Certification | 80 PLUS |
Software / System Requirements
| OS Provided | FortiOS |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
