Image may not exactly match the product.

HP Enterprise

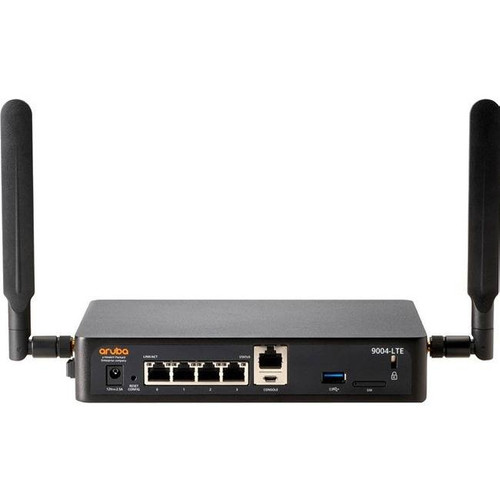

HPE Aruba 9004-LTE (US) - Gateway - 4 Ports - GigE - ZigBee, NFC, Bluetooth, LTE - Cloud-managed - BTO - R3V91A

SKU:
R3V91A
Shipping:
Calculated at Checkout
$2,373.00 $1,780.50
(You save $592.50 )

Image may not exactly match the product.

$2,373.00 $1,780.50
(You save $592.50 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - parts and labor - 1 year
Network Protocols:
Bluetooth 5.0, Gigabit Ethernet, LTE, NFC, ZigBee
Connectivity Type:
Wired, Wireless
Product Line:
HPE Aruba
Device Type:
Gateway
Installation Type:
External
Model:
9004-LTE (US)
Color:
Black
Ports Qty:
4
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway

HPE Aruba Networking 9000 Series Branch Gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series can be used as a wireless gateway for enhanced Wi-Fi scalability and security or for SD-WAN capabilities in the branch. Deploying this series as part of the HPE Aruba Networking SD-Branch solution is an affordable way to support multiple WAN connections, including the internet, MPLS, cellular, role-based policy enforcement, and path optimization. Designed with enterprise-grade capabilities and compact form factors, including an integrated LTE option, the 9000 Gateway can be easily configured and managed using HPE Aruba Networking Central, an AI-powered solution that simplifies IT operations, improves agility, and reduces costs by unifying management of all network infrastructure.
HPE Aruba Networking 9004 (US) 4-Port 10/100/1000BASE-T LTE 2K Clients - 32 APs Branch Gateway
Versatile cloud-managed edge appliance can be deployed as an SD-Branch gateway or as a wireless gateway for greater scalability.
The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
Layer 4-7 stateful firewall delivers a consistent user, device, and application awareness across WLAN, LAN, and WAN.
Dynamic Segmentation for automated role-based policy enforcement across users, devices, and IoT.
The 9004-LTE model provides integrated LTE connectivity for use as a dedicated or redundant WLAN uplink.

Versatile, Cost-effective Performance

  • The HPE Aruba Networking 9000 Series Branch Gateways are compact edge appliances ideal for small enterprise or branch locations looking for enhanced security with optional integrated LTE connectivity.
  • The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
  • It supports redundancy, clustering, and live upgrades for enhanced resiliency and high availability.
  • The 9004-LTE model can a use high-speed LTE connection as either a dedicated or redundant WAN uplink for business continuity.
  • IoT radio supports BLE technologies.

Flexible Deployments with Enhanced Security

  • The HPE Aruba Networking 9000 Series Branch Gateways are ready for SD-Branch, WLAN, IPSec, and security use cases.
  • Deploy as mobility controllers to increase wireless scalability and provide WLAN and LAN services such as Dynamic Segmentation, stateful firewall, and live upgrades.
  • It is supported by the HPE Aruba Networking EdgeConnect SD-Branch solution that simplifies management of branch traffic. Gateways deployed in SD-WAN mode add role and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features.
  • Offers enhanced security with Dynamic Segmentation to nearly eliminate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
  • Deep packet inspection provides greater application visibility and control. As a part of the policy enforcement firewall, the 9000 series consistently evaluates and improves performance and usage policies for over 3,800 applications.

AI-powered Cloud-based Management

  • The HPE Aruba Networking 9000 Series Branch Gateways can be easily configured and managed using cloud-native HPE Aruba Networking Central that provides AI-powered insights, workflow automation, and robust security.
  • Zero-touch provisioning simplifies deployment at branch sites that have few or no local IT resources.
  • Wizard-based UI-driven workflows in HPE Aruba Networking Central NetConductor automate network design and policy creation, further streamlining network configuration and security operations from the cloud.
  • The gateway supports WLAN and SD-WAN deployments with HPE Aruba Networking Central subscription licenses.

Lower Cost and Greater Efficiency with SD-Branch

  • SD-branch technology provides a centrally-managed unified platform for SD-WAN, routing, security, LAN and Wi-Fi to deliver the ease of deployment, operations, and cost savings needed when managing large, distributed branch locations.
  • The SD-Branch orchestrator seamlessly updates the overlay network across multiple branch locations, data centers, public clouds, and SaaS — delivering a consistent user experience and policy enforcement.
  • Greater visibility into performance across every uplink in a branch to improve the reliability, re-routing traffic over a secondary link as necessary.
  • Dynamic traffic steering based on roles, applications, and even IoT devices to prioritize traffic and improve user experience.
  • Enhanced branch security with stateful application-aware firewall, Dynamic Segmentation, intrusion detection, web content filtering/classification and integration with third-party cloud security providers.

  • High performance and reliability
    For distributed enterprises with increasing performance and bandwidth needs, the 9000 series is designed with scale and flexibility and is equipped with plenty of horsepower at a competitive price-point. The 9000 series provides connectivity for up to 2,048 users or client devices at impressive firewall throughput. These capabilities are up to 80 times the client density and 10 times the maximum throughput of typical SD-WAN appliances. For enhanced resiliency and high availability, the multiple 9000 series can be clustered together at each branch.
  • IoT and integration ready
    The gateway also uses integrated device profiling to improve client visibility and works with Aruba Central, ClearPass Policy Manager or ClearPass Device Insight to provide advanced user, device and IoT policy management and insights.
  • SD-WAN deployment
    For organizations that are now managing multiple WAN connections, 9000 series gateways can be connected to Aruba's SD-WAN fabric right out of the box. SD-WAN is a rich WAN management solution that is used to simplify management of traffic entering and exiting branch sites. Role-based intrusion detection and prevention (IDS/IPS), Dynamic Segmentation, and stateful firewall deliver integrated security requirements.
  • Branch and campus deployment
    9000 series gateways can also be re-purposed as mobility controllers to provide WLAN and LAN services such as Dynamic Segmentation, stateful firewall and Live Upgrades.
  • Integrated LTE
    The 9004-LTE is a gateway with an integrated LTE module that can use high-speed LTE as a dedicated or redundant WAN uplink. The LTE operations are managed via Aruba Central.
  • Unified policy enforcement
    To simplify and secure wired and wireless network access, the 9000 series gateways are a pivotal component of Aruba Dynamic Segmentation. Wired and wireless traffic can be tunneled to a gateway, which then consistently provides policy enforcement based on user role (e.g. guest, contractor and employee), device type, application and network location.
  • Microsoft features
    Aruba's integration with Microsoft enables unique application intelligence that detects Microsoft 365 (Office 365), Teams and Skype for Business traffic and then prioritizes them over less critical applications. Through management interfaces on Aruba Central, ArubaOS and Aruba AirWave, IT can visualize call quality metrics such as MOS, latency, jitter and packet loss for additional insights.
  • Policy enforcement firewall
    The 9000 series includes a Layer 4-7 stateful firewall with PEF to deliver a consistent user, device and application awareness across WLAN, LAN and WAN. When deployed alongside Aruba ClearPass Policy Manager, policies are automatically enforced to simplify SSID, VLAN and policy management.
  • Threat defense with IDS/IPS
    To improve security against a growing attack surface, gateways deployed in SD-WAN mode add role and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features. The threat defense function is further augmented with one-click integration with third-party cloud-based security solutions.
  • Application visibility and control
    Deep Packet Inspection (DPI) technology, which is a component of PEF, consistently evaluates and optimizes performance and usage policies for over 3,000 applications. This ensures a remarkably high Quality of Service (QoS) - even for encrypted traffic.
  • High availability
    The 9000 series can be deployed with N+1 or NxN redundancy and can also join a controller cluster when deployed as a Mobility Controller managed by Mobility Master. This increases performance and scale for enhanced resiliency.
  • Unified communications and collaboration (UCC)
    Visualize and troubleshoot networks based on call quality metrics such as MOS, latency jitter and packet loss. Supported applications include: Teams, Skype for Business, Wi-Fi Calling, FaceTime, SIP, Jabber, Spark and more.

Aruba 9000 series gateways provide high-performance networking, SD-WAN and security functionality in compact and cost-effective form factors. Ideally suited for branch and small campus networks, the 9000 series gateways serve a key role within Aruba's SD-Branch solution, which unifies WLAN, LAN, SD-WAN and security for distributed enterprises.

Specs Overview

  • Product Description
    HPE Aruba 9004-LTE (US) - gateway - ZigBee, NFC, Bluetooth, LTE - cloud-managed
  • Device Type
    Gateway
  • Form Factor
    External
  • Ports Qty
    4
  • Data Link Protocol
    Gigabit Ethernet, ZigBee, NFC, Bluetooth 5.0, LTE
  • Performance
    Firewall throughput: 2 Gbps Bridged throughput: 4 Gbps
  • Capacity
    Number of supported devices: 2048 Active firewall sessions: 32426
  • Mobile Broadband Access
    Yes
  • Cellular Protocol
    LTE
  • Included Accessories
    2 x dipole antennas
  • Power
    AC 120/230 V (50/60 Hz)
  • Pricing Type
    BTO
  • Dimensions (WxDxH)
    7.8 in x 6 in x 1.5 in
  • Weight
    2.52 lbs
  • Manufacturer Warranty
    1-year warranty

Detailed Specs
