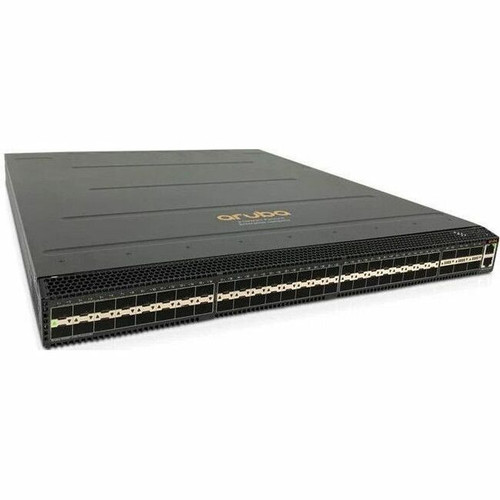

HPE Aruba CX 10000-48Y6C - Switch - L3 - Managed - 48 X 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 X 40/100 Gigabit QSFP+ / QSFP28 - Front To Back Airflow - Rack-mountable - R8P13A#ABA

SKU:
R8P13A#ABA
Shipping:
Calculated at Checkout
$55,639.00 $41,864.50
(You save $13,774.50 )

Image may not exactly match the product.

$55,639.00 $41,864.50
(You save $13,774.50 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 1 year
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
HPE Aruba CX
Model:
10000-48Y6C
Family:
25 Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
Rack Mounting Kit:
Optional
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl

HPE Aruba Networking CX 10000 Switch Series delivers a flexible and innovative approach to address the security performance, agility, and scalability demands of both traditional enterprise data centers and emerging distributed, edge and co-located centers of data.  The CX 10000 series is a category of switches that combines the best-of-breed network operating system, HPE Aruba Networking CX Switch Operating System (AOS-CX), for data center, campus, and edge in addition to the fully programmable AMD Pensando DPU. This allows the CX 10000 switches to deliver software-defined services inline,  at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/L3 switches at a fraction of their TCO.  This allows the flexibility to enable service delivery, when deployed as access, leaf top of rack (ToR), or end of row (EoR) in a data center, and potentially in the aggregation layer in campus or edge data center designs.
HPE Aruba Networking CX 10000-48Y6C Distributed Services Front-to-Back 6 Fans 2 PSU Switch Bdl
A category of distributed services switch.
HPE Aruba Networking CX with embedded programmable DPU (Pensando Elba ).
Unified network and security policy through HPE Aruba Networking Fabric Composer.
Security ecosystem integration with third-party vendors.
Leverages existing AOS-CX Cloud Native Switching.

Improves Network Bandwidth and Performance

  • The HPE Aruba Networking CX 10000 Switch Series offers a unique blend of performance and scale for distributing advanced networking and security services where it is impractical and costly to force traffic back and forth across the network to a centralized policy enforcement point.
  • Simplify application of services at the services network access layer edge.
  • All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications today and in the future., the CX 10000 switches provides 3.6 Tbps for bidirectional switching and 2000 Mpps for forwarding.

Limit Security Appliance Sprawl and Cost

  • The CX 10000 switches improve network bandwidth and performance by not having to trombone local traffic to a centralized chokepoint, helping to improve security posture while limiting appliance sprawl complexity and cost.
  • The CX 10000 switches provide a compelling architectural alternative that distributes these advanced services to the data center edge, with unified network and security automation and policy management.

Extend Zero Trust and Micro Segmentation

  • The HPE Aruba Networking CX 10000 Switch Series allows operators to extend industry-standard leaf-spine networking with 800G of distributed micro-segmentation, east-west firewalling, NAT, encryption and telemetry services delivered inline across every port closer to critical enterprise applications.
  • Organizations with dedicated SecOps teams can leverage AMD Pensando policy and services manager (PSM) based on specific security roles and responsibilities for increased scalability and fault tolerance.
  • Extends Zero Trust segmentation deeper into the data center for any type of host.
  • Optimizes network traffic flows, bandwidth, and performance, which reduces operational complexity associated with service stitching.

Simplify Operations

  • The CX 10000 switches are integrated with Fabric Composer which provides unified network and security management, automated switch and network configurations, and unified security policy and distributed firewalls across the entire switching fabric.
  • The CX 10000 switches integrate through Rest API, provides flow data to security and network performance tools including Advanced Security ML (XDR), Application Dependency Mapping (ADM), Network Performance Management (NPM), SIEM/SOAR, firewall compliance rules, and identity group mapping tools.
  • The switch is based on the CX Operating System, a modern, database-driven operating system that automates and simplifies many critical and complex network tasks.

Designed with the next generation of large-scale data centers in mind, the Aruba CX 10000 Switch Series delivers a flexible and innovative approach to address the security compliance, performance, agility, and scalability demands of the highly distributed, hybrid, multi-cloud application era.
In conjunction with Pensando, Aruba has defined a new market category of data center switches. The CX 10000 combines the best-of-breed network operating system, Aruba AOS-CX, for data center, campus, and edge in addition to the fully programmable Pensando DPU. This allows the CX 10000 to deliver stateful software-defined services inline, at scale, with wire-rate performance and orders of magnitude scale and performance improvements over traditional L2/3 switches at a fraction of their TCO.
The Aruba CX 10000 allows operators to extend industry standard leaf-spine networking with distributed stateful segmentation, east-west firewalling, NAT1, encryption, and telemetry services - all delivered inline, all the time, on every access port, closer to where critical enterprise applications run. The CX 10000 distributed services architecture is agnostic of network deployment architecture. This allows the flexibility to enable stateful services delivery, when deployed as access, leaf Top of Rack (ToR), or End of Row (EoR) in a datacenter, and potentially in the aggregation layer in campus or edge data center designs.
The CX 10000 offers 3.6Tbps of line-rate switching capacity with interface configurations supporting 1/10/25GbE (SFP/ SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) connectivity, in a compact 1U form factor. Consequently, these switches offer a fantastic investment for customers migrating from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE to 100GbE ports.
Product Description HPE Aruba CX 10000-48Y6C - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
Performance Switching capacity: 3.6 Tbps
Latency: < 1.30 µs
Capacity IPv4 hosts: 120000
IPv6 hosts: 52000
IPv4 unicast direct routes: 131072
IPv6 unicast direct routes: 32732
IGMP groups: 4094
MLD groups: 4094
IPv4 routes (Multicast): 4094
IPv6 routes (Multicast): 4094
MAC Address Table Size 98K entries
Routing Protocol OSPF, BGP-4, RIP-2, GRE, OSPFv3, Multiprotocol BGP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP, CLI
Features REST API interface
Power (50 - 60 Hz)
Dimensions (WxDxH) 17.3 in x 20.1 in x 1.7 in
Weight 21.49 lbs
Localization English / United States
Manufacturer Warranty 1-year warranty
General
Device Type Switch - 48 ports - L3 - managed
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 25 Gigabit Ethernet
Ports 48 x 1/10/25 Gigabit Ethernet SFP / SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP+ / QSFP28
Performance Switching capacity: 3.6 Tbps
Latency: < 1.30 µs
Capacity IPv4 hosts: 120000
IPv6 hosts: 52000
IPv4 unicast direct routes: 131072
IPv6 unicast direct routes: 32732
IGMP groups: 4094
MLD groups: 4094
IPv4 routes (Multicast): 4094
IPv6 routes (Multicast): 4094
MAC Address Table Size 98K entries
Routing Protocol OSPF, BGP-4, RIP-2, GRE, OSPFv3, Multiprotocol BGP, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng
Remote Management Protocol SNMP, CLI
Features REST API interface
RAM 32 GB
Flash Memory 64 MB
Built-in Devices 64 GB SSD
Expansion / Connectivity
Interfaces 1 x serial RJ-45
1 x console (USB)
1 x console (micro-USB)
1 x LAN RJ-45 management
Power
Power Device Internal power supply - hot-plug
Installed Qty 2
Max Supported Qty 2
Power Provided 550 Watt
Voltage Required (50 - 60 Hz)
Miscellaneous
Included Accessories 6 x fans
Rack Mounting Kit Optional
Localization English / United States
Dimensions & Weight
Width 17.3 in
Depth 20.1 in
Height 1.7 in
Weight 21.49 lbs
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 85% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 95%
