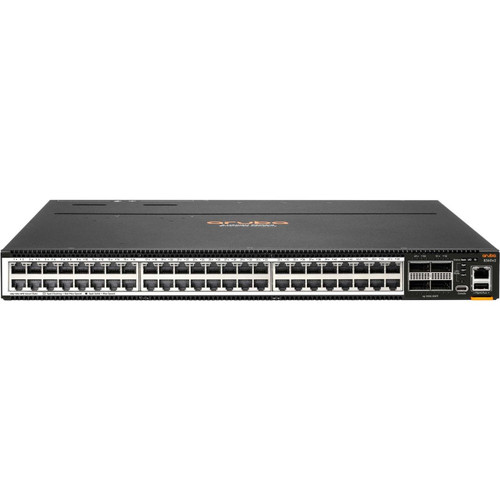

Image may not exactly match the product.

HP Enterprise

HPE Aruba CX 8360-48XT4C V2 - Switch - L3 - Managed - 48 X 100/1000/2.5G/5G/10GBase-T + 4 X 40/100 Gigabit QSFP+ / QSFP28 - Rack-mountable - Spare - JL720C

SKU:
JL720C
Shipping:
Calculated at Checkout
$40,335.00 $30,349.31
(You save $9,985.69 )

Image may not exactly match the product.

$40,335.00 $30,349.31
(You save $9,985.69 )
In Stock
In-Stock
Availability:
In Stock. Ships Same Business Day If Ordered Before 3pm PT

Condition:
New
Warranty Information
Limited Warranty - lifetime
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
HPE Aruba CX
Model:
8360-48XT4C v2
Family:
100 Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
Rack Mounting Kit:
Included
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.
HPE Aruba Networking CX 8360-48XT4C v2 48-port 1G/10GBase-T 4-port 100G QSFP+/QSFP28 Switch
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec.
MACsec secured connectivity over untrusted domains.
Intelligent monitoring and visibility with Aruba Network Analytics Engine.
High availability with industry leading VSX redundancy.

Modular Cloud-Native Architecture

  • The Aruba CX 8360 v2 Switch Series AOS-CX simplify the complexities of managing data center networks with automation options to match your IT organization’s operating model.
  • Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
  • REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
  • Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.

Aruba Network Analytics Engine

  • The Aruba Network Analytics Engine (NAE) for advanced telemetry and automation. NAE is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues.
  • Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High Availability and Resiliency

  • All software processes in the Aruba CX 8360 v2 Switch Series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.
  • The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX).
  • Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.

Software-Defined Automation

  • The Aruba CX 8360 v2 Switch Series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
  • Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

HPE Aruba CX 8360-48XT4C v2 - Switch - L3 - managed - 48 x 100/1000/2.5G/5G/10GBase-T + 4 x 40/100 Gigabit QSFP+ / QSFP28 - rack-mountable - spare
Product Description HPE Aruba CX 8360-48XT4C v2 - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype 100 Gigabit Ethernet
Ports 48 x 100/1000/2.5G/5G/10GBase-T + 4 x 40/100 Gigabit QSFP+ / QSFP28
Performance Switching capacity: 1.76 Tbps
Throughput: 2.678 Mpps
Capacity MAC addresses: 212992
IPv4 host table capacity: 145780
IPv6 host table capacity: 145780
IPv4 routes (Unicast): 606977
IPv6 routes (Unicast): 630784
IPv4 ACL entries (ingress): 65536
IPv6 ACL entries (ingress): 16384
MAC ACL entries (ingress): 65536
IPv4 ACL entries (egress): 8192
IPv6 ACL entries (egress): 2048
MAC ACL entries (egress): 8192
VLANs supported: 4094
IGMP groups: 7000
MLD groups: 7000
IPv4 routes (Multicast): 7000
IPv6 routes (Multicast): 7000
Jumbo Frame Support 9KB
Routing Protocol OSPF, EGP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, MPLS, BGP-MP, MSTP, RSTP, STP
Remote Management Protocol SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Features Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, BFD, UDLD, Rapid PVST+, IPv4 support, DWRR, LACP, DCB, fan tray, redundant hot swappable fans, congestion control, packet storm protection, SP, Loopback, MSDP, ERPS, MACsec support, VTEP support, ECN, BPDU, ICMP, 32MB packet buffer, VXLAN, Link Aggregation, fast leave, UDP, PIM, Cisco IPSLA, RSTP, broadcast mode, VSX, Multicast routing
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
Power AC 100-240 V
Power Redundancy Yes
Dimensions (WxDxH) 17.4 in x 16 in x 1.7 in
Weight 18.85 lbs
Pricing Type Spare
Manufacturer Warranty Limited lifetime warranty
General
Device Type Switch - 48 ports - L3 - managed
Enclosure Type Rack-mountable 1U
Subtype 100 Gigabit Ethernet
Ports 48 x 100/1000/2.5G/5G/10GBase-T + 4 x 40/100 Gigabit QSFP+ / QSFP28
Performance Switching capacity: 1.76 Tbps
Throughput: 2.678 Mpps
Capacity MAC addresses: 212992
IPv4 host table capacity: 145780
IPv6 host table capacity: 145780
IPv4 routes (Unicast): 606977
IPv6 routes (Unicast): 630784
IPv4 ACL entries (ingress): 65536
IPv6 ACL entries (ingress): 16384
MAC ACL entries (ingress): 65536
IPv4 ACL entries (egress): 8192
IPv6 ACL entries (egress): 2048
MAC ACL entries (egress): 8192
VLANs supported: 4094
IGMP groups: 7000
MLD groups: 7000
IPv4 routes (Multicast): 7000
IPv6 routes (Multicast): 7000
Jumbo Frame Support 9KB
Routing Protocol OSPF, EGP, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, MPLS, BGP-MP, MSTP, RSTP, STP
Remote Management Protocol SNMP, RMON, SNMP 3, SNMP 2c, TFTP, SSH, SSH-2, CLI, SFTP, NTP, ICMP, IPv4, IPv6, RSTP
Encryption Algorithm 128-bit AES, 256-bit AES, EAP-TLS
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2), RADSEC
Features Flow control, IP-routing, DHCP support, ARP support, VLAN support, IGMP snooping, port mirroring, manageable, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, BFD, UDLD, Rapid PVST+, IPv4 support, DWRR, LACP, DCB, fan tray, redundant hot swappable fans, congestion control, packet storm protection, SP, Loopback, MSDP, ERPS, MACsec support, VTEP support, ECN, BPDU, ICMP, 32MB packet buffer, VXLAN, Link Aggregation, fast leave, UDP, PIM, Cisco IPSLA, RSTP, broadcast mode, VSX, Multicast routing
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
Processor 1: 1.8 GHz
RAM 16 GB
Flash Memory 32 GB
Expansion / Connectivity
Interfaces 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+
1 x serial (console)
1 x USB-C console
1 x LAN RJ-45
1 x USB Type A
48 x 100/1000/2.5G/5G/10GBase-T
Power
Power Device Internal power supply - hot-plug
Installed Qty 0
Max Supported Qty 2
Power Redundancy Yes
Power Redundancy Scheme N+1
Voltage Required AC 100-240 V
Miscellaneous
Rack Mounting Kit Included
Compliant Standards EMC, ICES-003 Class A, RoHS, Laser Class 1, UL 60950-1, ISO 7779, VCCI Class A, EN 50581:2012, CNS 13438, CSA 22.2 No. 60950-1, EN 61000-3-3:2013, EMC 2014/30/EU, ISO 9296, FCC CFR47 Part 15 A, CNS 13438 Class A, Directive 2014/35/EU, EN 55032:2015, CISPR 32 Class A, EN 61000-3-2:2014 Class A, CISPR 35, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 60825-1:2014, EN 55035:2017, IEC 62368-1: 2014, EN 62368-1:2014 Second Edition, IEC 60825-1:2014 Class 1, IEC60950-1:2005, Second edition + Am1:2009 + A2:2013
Pricing Type Spare
Software / System Requirements
Software Included ArubaOS-CX
Dimensions & Weight
Width 17.4 in
Depth 16 in
Height 1.7 in
Weight 18.85 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 15 - 95% (non-condensing)
