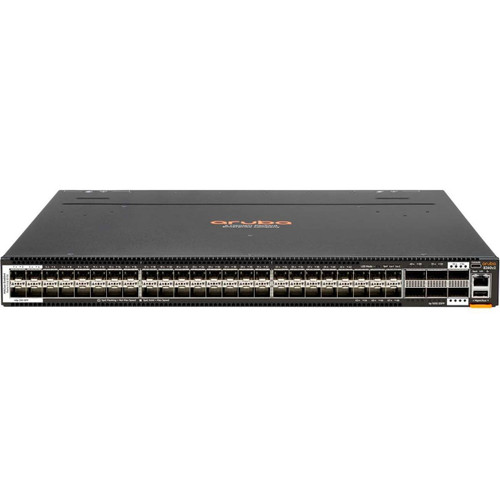

HPE Aruba CX 8360-48Y6C V2 - Switch - 48 Ports - Managed - Rack-mountable - R9G23A#ABA

SKU:
R9G23A#ABA
Shipping:
Calculated at Checkout
$46,645.00 $34,997.40
(You save $11,647.60 )

Image may not exactly match the product.

$46,645.00 $34,997.40
(You save $11,647.60 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - lifetime
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
HPE Aruba CX
Model:
8360-48Y6C v2
Family:
25 Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
Rack Mounting Kit:
Included
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.
HPE Aruba Networking CX 8360-48Y6C v2 Power-to-Port Airflow 5 Fans 2 PSU Attached Bundle
48-port 1/10/25G with 4 MACsec, 6-port of 40/100G with 2 MACsec.
MACsec secured connectivity over untrusted domains.
Intelligent monitoring and visibility with Aruba Network Analytics Engine.
High availability with industry leading VSX redundancy.

Modular Cloud-Native Architecture

  • The Aruba CX 8360 v2 Switch Series AOS-CX simplify the complexities of managing data center networks with automation options to match your IT organization’s operating model.
  • Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
  • REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
  • Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.

Aruba Network Analytics Engine

  • The Aruba Network Analytics Engine (NAE) for advanced telemetry and automation. NAE is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues.
  • Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.

High Availability and Resiliency

  • All software processes in the Aruba CX 8360 v2 Switch Series run as microservices that communicate via the state database of the switch; there is no direct communication between microservices. Should a software process crash, the impact of that failure will be limited.
  • The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX).
  • Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.

Software-Defined Automation

  • The Aruba CX 8360 v2 Switch Series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
  • Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

  • Modular cloud-native architecture
    The Aruba CX 8360 v2 Switch Series AOS-CX simplify the complexities of managing data center networks with automation options to match your IT organization's operating model. Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime. REST APIs and Python scripting provide fine-grained micro-services architecture enabling full integration with other workflow systems and services. Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
  • Aruba network analytics engine
    The Aruba Network Analytics Engine (NAE) for advanced telemetry and automation. NAE is an industry-first monitoring and troubleshooting system, providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues. Customers can use data from The Time Series Database (TSDB) to store configuration and operational state to write software modules to troubleshoot problems. This data may also be used to analyze trends, identify anomalies, and predict future capacity requirements.
  • High availability and resiliency
    All software processes in the Aruba CX 8360 v2 Switch Series run as micro-services that communicate via the state database of the switch, there is no direct communication between micro-services. Should software process crash, the impact of that failure will be limited. The ability of ArubaOS-CX to maintain synchronous state across dual control planes allows a unique high availability solution called Aruba Virtual Switching Extension (VSX). Aruba VSX provides a robust, yet simple solution for high availability with a unique design for control plane synchronization and an architecture that is redundant in both hardware and software by deploying two chassis with an inter-switch link, maintaining its independent control.
  • Software-defined automation
    The Aruba CX 8360 v2 Switch Series is supported by Aruba Fabric Composer, a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure. Orchestrate a discrete set of switches as a single networking fabric to simplify operations and troubleshooting. This infrastructure and application-aware solution also automates various configuration and lifecycle events.

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next generation core and aggregation layer of campuses, as well as virtual and cloud data center environments. The first switch in this series is the Aruba CX 8360-48Y6C v2 switch.

Specs Overview

  • Product Description
    HPE Aruba CX 8360-48Y6C v2 - switch - 48 ports - managed - rack-mountable
  • Device Type
    Switch - 48 ports - L3 - managed
  • Enclosure Type
    Front to back airflow rack-mountable 1U
  • Subtype
    25 Gigabit Ethernet
  • Ports
    44 x 1/10/25 Gigabit SFP / SFP+ / SFP28 + 4 x 10 Gigabit / 25 Gigabit SFP+ / SFP28 + 4 x 40/100 Gigabit QSFP+ / QSFP28 + 2 x 40/100 Gigabit QSFP+ / QSFP28
  • Performance
    Switching capacity: 4.8 Tbps Switching capacity: 2.678 Mpps
  • Capacity
    MAC addresses: 212992 IPv4 host table capacity: 145780 IPv6 host table capacity: 145780 IPv4 routes (Unicast): 606977 IPv6 routes (Unicast): 630784 IPv4 ACL entries (ingress): 65536 IPv6 ACL entries (ingress): 16384 MAC ACL entries (ingress): 65536 IPv4 ACL entries (egress): 8192 IPv6 ACL entries (egress): 2048 MAC ACL entries (egress): 8192 VLANs supported: 4094 IGMP groups: 7000 MLD groups: 7000 IPv4 routes (Multicast): 7000 IPv6 routes (Multicast): 7000
  • Jumbo Frame Support
    9KB
  • Routing Protocol
    OSPF, BGP-4, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, static IPv6 routing, policy-based routing (PBR), RIPng, MLDv2, MLD, CIDR, BGP-MP
  • Remote Management Protocol
    SNMP 1, SNMP 2, RMON, SNMP 3, TFTP, SSH, SSH 6, SFTP, ICMP
  • Features
    Flow control, DHCP support, BOOTP support, ARP support, load balancing, VLAN support, IGMP snooping, Syslog support, port mirroring, IPv6 support, High Availability, sFlow, STP support, RSTP support, VRRP support, MSTP support, QoS, DHCP server, MLD snooping, ECMP, BFD, DWRR, DHCP relay, DCB, SNMP trap, dual firmware images, NDP, packet storm protection, SP, Loopback, ERPS, MACsec support, hot swappable 5 fans, ECN, BPDU, ICMP Router Discovery Protocol (IRDP), 32MB packet buffer, VXLAN, Link Aggregation, RoCE v2, EVPN, fast leave, NTP, Private VLAN, Cisco IPSLA, IP forwarding support, IPv4 and IPv6 dual stack, DDoS Protection, IPv6 addressing, VSX, Aruba VSF, RPVST+, DNS support, UDP support, TCP support, BGP, UDLD, IPv6 multicasting
  • Compliant Standards
    IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3an, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.3by, IEEE 802.3cc
  • Power
    AC 100-240 V (47 - 63 Hz)
  • Power Redundancy
    Yes
  • Dimensions (WxDxH)
    17.4 in x 22 in x 1.7 in
  • Weight
    23.66 lbs
  • Localization
    English / United States
  • Manufacturer Warranty
    Limited lifetime warranty
