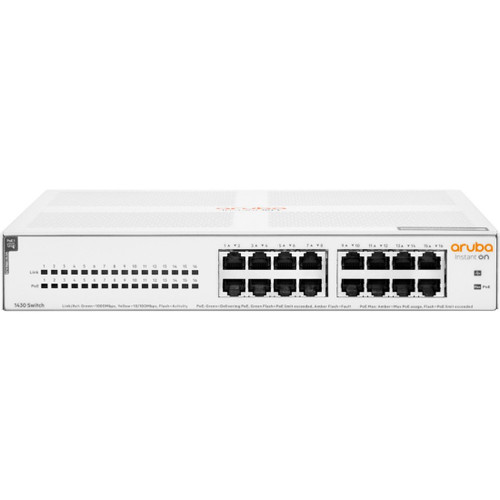

Image may not exactly match the product.

HPE

HPE Networking Instant On 1430 16G Class4 PoE 124W Switch - Switch - Unmanaged - 16 X 10/100/1000 (PoE Class 4) - Desktop, Rack-mountable, Wall-mountable - PoE (124 W) - BTO - R8R48A#ABA

SKU:
R8R48A#ABA
Shipping:
Calculated at Checkout
$333.00 $219.99
(You save $113.01 )

Image may not exactly match the product.

$333.00 $219.99
(You save $113.01 )
In Stock
In-Stock
Availability:
In Stock. Ships Same Business Day If Ordered Before 3pm PT

Condition:
New
Warranty Information
Limited Warranty - lifetime
Installation Type:
Desktop, Rack-mountable, Wall-mountable
Device Type:
Switch
Product Line:
HPE Networking Instant On
Model:
1430 16G Class4 PoE 124W Switch
Family:
Gigabit Ethernet
Ports Qty:
16
Managed:
No
PoE Support:
PoE
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430

The Aruba Instant On 1430 Switch Series is a plug-and-play unmanaged switch series for small businesses looking for simple, reliable, and low-cost network connectivity. These easy-to-use switches deliver Layer 2 Gigabit Ethernet switching capabilities—at an affordable price point—to help connect and share common resources like printers and access points, without any complicated network configuration. With plug-and-play operation, fully automated functions, zero ongoing maintenance, and Power over Ethernet (PoE) models, these switches deliver simple, reliable connectivity for the smallest SMBs and home offices.
HPE Networking Instant On Switch 16p Gigabit CL4 PoE 124W 1430
Unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in 5-, 8-, 16-, 24-and 26-port non-PoE and PoE models.
No configuration or management needed.
Plug-and-play with fully automated functions and zero ongoing maintenance.
Up to 124W of PoE to power APs, IP Phones, and other IoT devices.
Fan-less design for silent deployment in office spaces.

Unmanaged Ethernet Connectivity for Small Businesses

  • The Aruba Instant On 1430 Switch Series is an unmanaged Layer 2 Gigabit Ethernet switch series ready to deploy in seven models in PoE and non-PoE configurations: one (1) 5-port, two (2) 8-port, two (2) 16-port, one (1) 24-port, and one (1) 26-port model with 2 SFP uplinks models.
  • With PoE models, you get up to 30W PoE per port power delivery for Class 4 PoE devices like access points, surveillance cameras and VoIP phones. The 8-port and 16-port PoE models come with the power budget of 64W and 124W respectively to support the latest IoT devices.
  • Two dedicated 1G SFP fiber ports on the 26-port model can be used for uplinks and to support long distance connectivity using fiber transceivers, for a total of 28 Ethernet ports.
  • Aruba Instant On Limited Lifetime support provides 24x7 phone support for the first 90 days and chat support for the entire warranty period. Community support is included for the life of the product.

Plug-and-Play Operation

  • The Aruba Instant On 1430 Switch Series models are easy to use with zero configuration and no required ongoing administration.
  • The unmanaged PoE models delivers fully automated support for powering compatible IP phones, video surveillance cameras, or wireless access points.
  • No configuration beyond installation of optional 1GbE SFP transceivers on 26-port model to extend connectivity with gigabit fiber.
  • Install flexibility with support for table-top, under-table, wall-mount, and rack-mount options (varies per model).
  • Simplified cabling automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports using Auto MDI/MDI-X.

Energy Efficiency and Traffic Optimization

  • The Aruba Instant On 1430 Switch Series supports Energy Efficient Ethernet (EEE) and is compliant with 802.3az standard requirements to save energy during periods of low data activity.
  • All models are fan-less for silent operation in office settings or acoustically sensitive environments and require less power to operate.
  • Quality of Service provides priority of time-sensitive packets (like VoIP and video) over other traffic based on DSCP or IEEE 802.1p classification.
  • Jumbo frame support provides up to 9216 bytes frame size to improve the performance of large data transfers.
  • Flow control provides a flow-throttling mechanism propagated through the network to prevent packet loss at a congested node.

  • Efficient power management
    With a generous PoE budget of 124 W, this switch supports multiple power-over-Ethernet devices, making it an ideal solution for businesses looking to deploy VoIP phones, wireless access points, or other PoE-capable devices without the clutter of extra cables.
  • Robust performance
    Boasting a throughput of 23.8 Mpps and a switching capacity of 32 Gbps, the HPE Networking Instant On 1430 16G Class4 PoE 124W Switch ensures smooth data transmission and high-speed connectivity for all connected devices.
  • Versatile connectivity options
    Equipped with 16 RJ-45 connectors supporting 10/100/1000 Base-T (PoE), this switch offers flexible connection options for a variety of network needs, ensuring compatibility with a wide range of devices.
  • Durable and reliable
    Designed for longevity with a mean time between failures (MTBF) of 126.1 years, this switch promises enduring performance and reliability for any business infrastructure.
  • Comprehensive standards compliance
    Meeting a wide array of compliance standards, including IEEE 802.3, IEEE 802.3ab, and more, this switch is engineered to provide a secure and stable networking environment, adhering to global regulatory requirements.

The HPE Networking Instant On 1430 16G Class4 PoE 124W Switch is a high-performance, reliable networking solution designed to meet the needs of small to medium-sized businesses. With its 124 W PoE budget, it can power multiple devices such as VoIP phones and wireless access points directly through the network cables, eliminating the need for additional power sources and reducing clutter. This switch also offers exceptional throughput of 23.8 Mpps and a switching capacity of 32 Gbps, ensuring smooth and efficient data transmission across the network. Its 16 Gigabit Ethernet ports provide ample connectivity for devices, making it an ideal choice for businesses looking to expand their network. Additionally, the switch's fanless design allows for silent operation, making it suitable for noise-sensitive environments. With its robust set of features and compliance with numerous standards, the HPE Networking Instant On 1430 16G Class4 PoE 124W Switch is a versatile and dependable choice for any growing business.

Specs Overview

  • Product Description
    HPE Networking Instant On 1430 16G Class4 PoE 124W Switch - switch - 16 ports - unmanaged - rack-mountable
  • Device Type
    Switch - 16 ports - unmanaged
  • Enclosure Type
    Rack-mountable 1U
  • Subtype
    Gigabit Ethernet
  • Ports
    16 x 10/100/1000 (PoE Class 4)
  • Power Over Ethernet (PoE)
    PoE
  • PoE Budget
    124 W
  • Performance
    Throughput: 23.8 Mpps Switching capacity: 32 Gbps Latency (100 Mbps): 2.7 µs Latency (1 Gbps): 1.8 µs
  • Capacity
    MAC address entries: 8192
  • MAC Address Table Size
    8192 entries
  • Jumbo Frame Support
    9216 bytes
  • Features
    2MB packet buffer, fanless, wall mountable, DSCP support, VoIP support, MDI/MDI-X switch, flow control, auto-sensing per device, STP support, EEE
  • Compliant Standards
    IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i
  • Power
    AC 100-127/200-240 V (50/60 Hz) 1.7 A
  • Dimensions (WxDxH)
    10.8 in x 10.2 in x 1.7 in
  • Weight
    4.61 lbs
  • Localization
    English / United States
  • Pricing Type
    BTO
  • Manufacturer Warranty
    Limited lifetime warranty
