NETGEAR

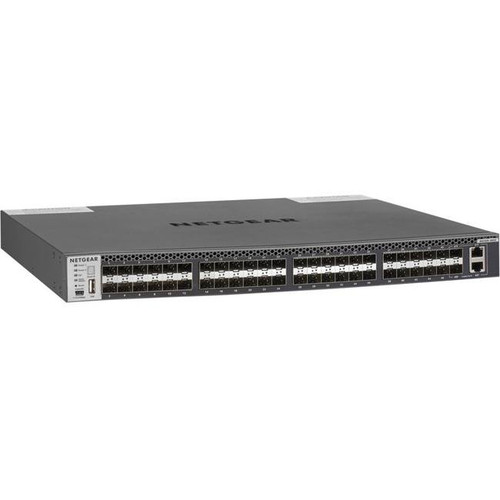

NETGEAR M4300-48XF - Switch - L3 - Managed - 48 X 10GBase-X + 2 X Shared 10GBase-T - Rack-mountable - XSM4348FS-100NES

SKU:
XSM4348FS-100NES
Shipping:
Calculated at Checkout
$7,487.67 $4,799.99
(You save $2,687.68 )

Image may not exactly match the product.

$7,487.67 $4,799.99
(You save $2,687.68 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - lifetime
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
NETGEAR
Model:
M4300-48XF
Family:
10 Gigabit Ethernet
Ports Qty:
48
Managed:
Yes
Stackability:
Stackable
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Cost effective 1G access layer in campus LAN networks, and high performance 10G distribution layer for midsize organizations networks
  • Zero Touch AV-over-IP with pre-configured L2 Multicast on all 1G models (1G AV encoders and decoders) and 10G models (SDVoE-ready)
  • Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including Policy Based Routing, RIP, VRRP, OSPF and PIM
  • Innovative mixed "Spine and Leaf", 1G and 10G stacking with nonstop forwarding and hitless failover redundancy
  • Low acoustics, half-width 16-port and 24-port 10G models can be paired in a single rack space for redundant Top of Rack
  • Up to 384 (Gigabit) ports, 768 (10 Gigabit) ports, 192 (40 Gigabit) ports or a combination in a stack seen as one "logical" switch
  • PoE+ (30 watts per port) with hot swap, redundant power supplies and full provisioning
  • 48- and 96-port 10G models' ultra-low latency and scalable table size with 128K MAC, 8K ARP/NDP, 4K VLANs, 12K routes
  • Mixed Stack of 1G and 10G models provides 16K MAC, 2K ARP/NDP, 4K VLANs and 512 routes

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivaled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing - as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.
Product Description NETGEAR M4300-48XF - switch - 48 ports - managed - rack-mountable
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10GBase-X + 2 x shared 10GBase-T
Performance Switching fabric bandwidth: 960 Gbps
Throughput: 714 Mpps
MAC Address Table Size 128K entries
Jumbo Frame Support 9KB
Routing Protocol RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
Remote Management Protocol SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM, 56MB packet buffer
Compliant Standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power AC 120/230 V
Power Redundancy Optional
Dimensions (WxDxH) 17.3 in x 13.6 in x 1.7 in
Weight 12.92 lbs
Localization United States, Europe
Manufacturer Warranty NETGEAR lifetime warranty
General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 10GBase-X + 2 x shared 10GBase-T
Performance Switching fabric bandwidth: 960 Gbps
Throughput: 714 Mpps
MAC Address Table Size 128K entries
Jumbo Frame Support 9KB
Routing Protocol RIP-2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, policy-based routing (PBR), MLD, MSTP, RSTP
Remote Management Protocol SNMP, RMON, Telnet, SNMP 3, HTTP, HTTPS, SSH-2, CLI, SCP, SFTP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
Encryption Algorithm SHA, MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), DoS attack prevention, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, NSF, sFlow, PVST+, UDLD, LLDP support, DHCP relay, LACP, RSPAN, PVRST, MIB, dual firmware images, CoS, PTP, STRG, AAA, UDP, PIM, 56MB packet buffer
Compliant Standards IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor : 800 MHz
RAM 1 GB
Flash Memory 256 MB
Expansion / Connectivity
Interfaces 48 x 10GBase-X SFP+
2 x 10GBase-T RJ-45
1 x management (Gigabit LAN) RJ-45
1 x serial (RS-232) RJ-45
1 x console (mini-USB)
1 x USB Type A
Power
Power Device Internal power supply - hot-plug
Installed Qty 1
Max Supported Qty 2
Power Redundancy Optional
Power Provided 250 Watt
Voltage Required AC 120/230 V
Power Consumption Operational 152.4 Watt
80 PLUS Certification 80 PLUS
Features Front-to-rear airflow
Miscellaneous
MTBF 657,392 hours
Compliant Standards SCCP
Localization United States, Europe
Dimensions & Weight
Width 17.3 in
Depth 13.6 in
Height 1.7 in
Weight 12.92 lbs
Manufacturer Warranty
Service & Support Limited warranty - lifetime
