Tripp Lite

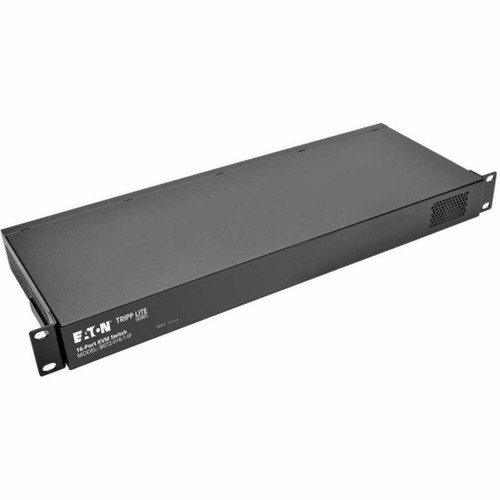

Tripp Lite 16-Port Cat5 IP KVM Switch Compact 1+1 User Rackmount TAA - KVM Switch - 16 Ports - Rack-mountable - TAA Compliant - B072-016-1-IP

SKU:
B072-016-1-IP
Shipping:
Calculated at Checkout
$1,331.20 $763.06
(You save $568.14 )

Image may not exactly match the product.

$1,331.20 $763.06
(You save $568.14 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 3 years
Installation Type:
Rack-mountable
Device Type:
KVM switch
Product Line:
Tripp Lite
Model:
16-Port Cat5 IP KVM Switch Compact 1+1 User Rackmount TAA
Family:
KVM
Ports Qty:
16
Rack Mounting Kit:
Included
Stackability:
Cascadable
Operating Systems Supported:
Apple MacOS, Linux, Microsoft Windows
KVM Local Users Qty:
1 local user
Server Connection Via Twisted Pair:
CAT5
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • 1-user, 16-port Cat5 type KVM switch with built-in IP functionality
  • Powerful control of up to 256 computers from one KVM console, locally or remotely
  • Achieves BIOS level control of any server, regardless of server condition and network connectivity and covers the entire spectrum of crash scenarios
  • Allows multiple simultaneous users to view remote sessions and remote control is transferable between users with appropriate permissions
  • Supports the highest security standards for encryption (128-bit SSL and HTTPS) and authentication for remote users
  • Advanced OSD management with multi-layer security for local users

Tripp Lite's B072-016-1-IP KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.
This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.
The B072-016-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously.
Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems and it supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.
Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.
Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-1-IP. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Specs Overview

  • Product Description
    Eaton Tripp Lite series 16-Port Cat5 IP KVM Switch Compact 1+1 User Rackmount TAA - KVM switch - 16 ports - rack-mountable - TAA Compliant
  • Device Type
    KVM switch - 16 ports - CAT5 - cascadable
  • Enclosure Type
    Rack-mountable 1U
  • Subtype
    KVM
  • Ports
    16 x KVM port(s)
  • KVM Users Qty
    1 local user
  • Remote Management Protocol
    HTTPS
  • Features
    On-Screen Display, 128-bit encryption, firmware upgradable
  • Dimensions (WxDxH)
    17 in x 9 in x 1.7 in
  • Weight
    5.51 lbs
  • System Requirements
    Apple MacOS, Linux, Microsoft Windows
  • TAA Compliant
    Yes
  • Manufacturer Warranty
    3-year warranty
  • Designed For
    P/N: N125-025-GY, N125-050-GY

Detailed Specs
