Tripp Lite

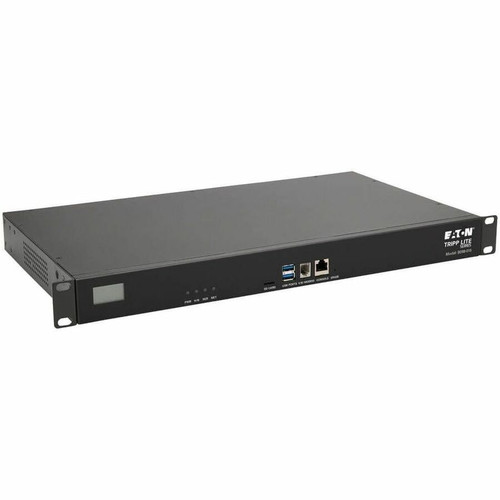

Tripp Lite 16-Port Serial Console Server. USB Ports (2) - Dual GbE NIC. 16 Gb Flash. B098-016

SKU:
B098-016
Shipping:
Calculated at Checkout
$5,000.00 $2,813.08
(You save $2,186.92 )

Image may not exactly match the product.

$5,000.00 $2,813.08
(You save $2,186.92 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 4 years
Network Protocols:
Gigabit Ethernet, RS-232
Connectivity Type:
Wired, Wireless
Product Line:
Tripp Lite
Device Type:
Console server
Installation Type:
External
Model:
16-Port Serial Console Server, USB Ports (2) - Dual GbE NIC, 16 Gb Flash, Wi-Fi, Desktop/1U Rack, TAA
Color:
Black
Ports Qty:
16
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • Access all your serial and network devices from anywhere in the world at any time
    This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports, dual SFP ports for fiber optic network connections, and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. You'll be able to manage a critical equipment outage quickly and remotely without making a costly and timeconsuming physical visit to the site.
  • Connect the Built-In V. 92 modem for Out-of-Band (OOB) access
    For OOB access, connect an RJ11 cable between the front-facing RJ11 port and a functioning landline port to allow the V. 92 modem to dial out.
  • Wi-Fi diversity antenna included
    The 16-port serial console server includes Wi-Fi, which supports either Client or WAP mode. Just attach the included 2.4 GHz SMA Wi-Fi diversity antenna to the console server's main Wi-Fi port.
  • Router/gateway
    Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.
  • The utmost in security to keep your sensitive data private
    The B098-016 supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.
  • PowerMan PDU and UPS support
    This USB console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.
  • USB console
    Two USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX or other LX Platform remote management cards.
  • Compact design for convenient mounting
    The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding.
  • TAA-Compliant for GSA schedule purchases
    The B098-016 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

This USB console server provides secure in-band (primary network) and out-of-band (alternate channel) remote access to serial- and network-connected routers, network switches, firewalls, PBX systems, UPS systems, PDUs and other devices. It offers reliable network connectivity with dual Gigabit primary and failover Ethernet ports, dual SFP ports for fiber optic network connections, and dual power supplies. You can use it in a wide variety of applications, including wiring closets, branch offices, kiosks, point-of-sale and other remote sites where a quick identification and resolution of network issues is imperative. You'll be able to manage a critical equipment outage quickly and remotely without making a costly and time-consuming physical visit to the site.
The 16 RJ45 console ports are configured to use standard Cat5e/6 patch cable when connecting to Cisco devices. They integrate with industry-standard directory servers using TACACS+, RADIUS, LDAP and Kerberos authentication. Provides 16 Gb of internal NAND flash memory, which can be used for log storage and file storage, and is expandable with an SD card.
For OOB access, connect an RJ11 cable between the front-facing RJ11 port and a functioning landline port to allow the V.92 modem to dial out.
Each gateway can port forward to an unlimited number of locally networked hosts (computers, routers). This rack console also includes a built-in stateful firewall and embedded DHCP server to host a separate management LAN for critical traffic.
The B098-016 supports the following security features and standards: PCI DSS 3.2, FIPS 140-2, SSL and SSH, stateful firewall, OpenVPN and IPSec VPN support. The embedded FIPS 140-2 OpenSSL cryptographic module is validated to meet FIPS 140-2 standards and has received Certificate #2473.
This USB console server uses PowerMan for PDU and RPC management and Network UPS Tools for UPS system monitoring and management. It provides support for Tripp Lite and other power products, so you can remotely manage power to your connected equipment.
Two USB 2.0 console ports allow connection to newer devices with USB console ports, such as Tripp Lite's wide variety of PDUs and UPS systems with WEBCARDLX or other LX Platform remote management cards.
The heavy-duty steel housing comes with mounting brackets for 1U installation in an EIA-standard 19-inch rack. Its fanless form factor also allows desktop deployment on included rubber feet that help prevent the unit from sliding.
The B098-016 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Description Eaton Tripp Lite Series 16-Port Serial Console Server, USB Ports (2) - Dual GbE NIC, 16 Gb Flash, Wi-Fi, Desktop/1U Rack, TAA - console server - TAA Compliant
Device Type Console server
Form Factor External - 1U
Flash Memory 16 GB
Ports Qty 16
Data Link Protocol Gigabit Ethernet, RS-232
Frequency Band 2.4 GHz
Included Accessories Rack mount kit, 2 x Cisco straight pinout loopback (black), Cisco rollover pinout loopback (red)
Power AC 120/230 V
Power Redundancy Yes
TAA Compliant Yes
Dimensions (WxDxH) 17 in x 10 in x 1.8 in
Weight 10.01 lbs
Manufacturer Warranty 4-year warranty
Designed For P/N: N001-006-BK
General
Device Type Console server
Height (Rack Units) 1U
Width 17 in
Depth 10 in
Height 1.8 in
Weight 10.01 lbs
Enclosure Color Black
Processor / Memory / Storage
Flash Memory 16 GB
Networking
Form Factor External
Ports Qty 16
Connectivity Technology Wireless, wired
Data Link Protocol Gigabit Ethernet, RS-232
Remote Management Protocol SNMP, CLI
Frequency Band 2.4 GHz
Status Indicators Port status, power, serial, Wi-Fi
Features Firewall protection, Access Point operational mode, IPSec Virtual Private Network (VPN), DHCP server, metal housing, Cisco straight pinout
Encryption Algorithm SSL, FIPS 140-2
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP)
Antenna
Antenna External detachable
Antenna Qty 1
Communications
Supported Flash Memory Cards SD Memory Card
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
16 x serial - RJ-45
2 x USB 2.0 - Type A
2 x - SFP (mini-GBIC)
1 x console - RJ-45
1 x modem - RJ-11
2 x antenna - SMA
Miscellaneous
Included Accessories Rack mount kit, 2 x Cisco straight pinout loopback (black), Cisco rollover pinout loopback (red)
Cables Included 2 x patch cable - 6 ft
4 x serial adapter
2 x crossover adapter
Compliant Standards FIPS 140-2, PCI DSS, SSL
TAA Compliant Yes
Power
Power Device Internal power supply
Installed Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V
Power Consumption Operational 15 Watt
Dimensions & Weight (Shipping)
Shipping Width 16 in
Shipping Depth 19.3 in
Shipping Height 3.3 in
Shipping Weight 10.1 lbs
Manufacturer Warranty
Service & Support Limited warranty - 4 years
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 90% (non-condensing)
Compatibility Information
Designed For P/N: N001-006-BK
