Tripp Lite

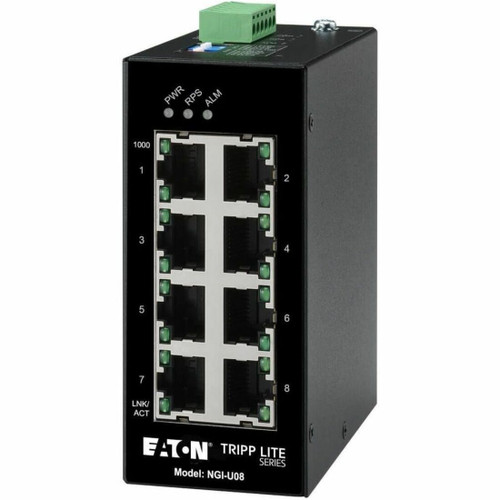

Tripp Lite Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, DIN Mount - Switch - 8 Ports - Unmanaged - TAA Compliant - NGI-U08

SKU:
NGI-U08
Shipping:
Calculated at Checkout
$295.00 $166.02
(You save $128.98 )

Image may not exactly match the product.

$295.00 $166.02
(You save $128.98 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 3 years
Installation Type:
DIN rail mountable
Device Type:
Switch
Product Line:
Tripp Lite
Model:
Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, DIN Mount
Ports Qty:
8
Managed:
No
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
The NGI-U08 adds Gigabit Ethernet capacity to your industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. You can share large bandwidth-intensive files, such as CAD drawings and videos, improving efficiency and cutting costly downtime. The industrial-grade switch with its rugged high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
Because it is an unmanaged switch, the NGI-U08 does not require configuration before use. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U08 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files. DIP switch supports an alarm relay output function in which you can connect an alarm light or buzzer.
The switch may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 6-pin 9 - 57VDC terminal block supplies both primary and secondary power input. Device power must be supplied by LPS (Limited Power Source) circuit.
Product Description Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, DIN Mount - switch - 8 ports - unmanaged - TAA Compliant
Device Type Switch - 8 ports - unmanaged
Ports 8 x 10/100/1000
Performance Switching capacity: 16 Gbps
MAC Address Table Size 2000 entries
Jumbo Frame Support 9000 bytes
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), rugged, metal housing, MAC address learning
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Power DC 9 - 57 V
Dimensions (WxDxH) 3.9 in x 2 in x 4.6 in
Weight 17.64 oz
Color Black
TAA Compliant Yes
Manufacturer Warranty 3-year warranty
Designed For P/N: N001-007-BL, N001-040-BL, N001-050-BK, N001-100-BK, N002-002-BK, N002-007-BK, N002-010-BK, N002-015-BK, N002-015-GY, N002-025-BK, N002-050-BK, N002-100-BK, N200-001-BL, N200-010-BK, N200-015-BK, N200-025-BK, N200-050-BK, N200-100-BK, N201-001-BK
General
Device Type Switch - 8 ports - unmanaged
Enclosure Type DIN rail mountable
Ports 8 x 10/100/1000
Performance Switching capacity: 16 Gbps
MAC Address Table Size 2000 entries
Jumbo Frame Support 9000 bytes
Features Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), rugged, metal housing, MAC address learning
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Status Indicators Power, transmit, receive, LAN, link/activity
Expansion / Connectivity
Interfaces 8 x 10/100/1000 Base-T RJ-45
Power
Voltage Required DC 9 - 57 V
Miscellaneous
Color Black
Included Accessories DIN-rail clip
Compliant Standards Plug and Play, FCC, RoHS, REACH, IEEE 802.3, IEEE 802.3u
TAA Compliant Yes
Dimensions & Weight
Width 3.9 in
Depth 2 in
Height 4.6 in
Weight 17.64 oz
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature -40 °F
Max Operating Temperature 167 °F
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 176 °F
Compatibility Information
Designed For P/N: N001-007-BL, N001-040-BL, N001-050-BK, N001-100-BK, N002-002-BK, N002-007-BK, N002-010-BK, N002-015-BK, N002-015-GY, N002-025-BK, N002-050-BK, N002-100-BK, N200-001-BL, N200-010-BK, N200-015-BK, N200-025-BK, N200-050-BK, N200-100-BK, N201-001-BK
