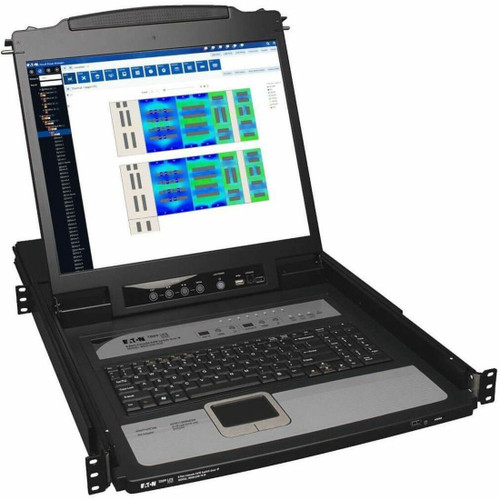

Tripp Lite B020-U08-19-IP KVM Switch 8 Port IP Console 1 RU w/ 19" LCD

SKU:
B020-U08-19-IP
Shipping:
Calculated at Checkout
$4,160.00 $2,229.89
(You save $1,930.11 )

Image may not exactly match the product.

$4,160.00 $2,229.89
(You save $1,930.11 )
In Stock
In-Stock
Availability:
In Stock. Ships Same Business Day If Ordered Before 3pm PT

Condition:
New
Warranty Information
1 Year
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

8-Port Rack Console KVM Ideal for Controlling Multiple Servers

Tripp Lite's B020-U08-19-IP NetDirector 8-Port Rackmount Console KVM Switch is the smart solution for controlling multiple servers in IT applications. It combines a keyboard, touchpad, 19in. color LCD and 8-port KVM switch in a 1U rack drawer for compact storage and easy access without compromising control over connected servers. The heavy-duty enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B020-U08-19-IP can directly control 8 servers/computers directly. It is compatible with both PS/2 and USB computers using Tripp Lite P778-series combo KVM cable kits (two 6ft. cable kits included). Built-in IP access capability enables servers/computers to be controlled from any location via LAN, WAN or Internet.
8-Port Rack Console KVM Ideal for Controlling Multiple Servers

All-in-One Network Management for Critical Systems

The B020-U08-19-IP offers a complete network management solution. It combines an 8-port KVM switch, keyboard, touchpad, numeric keypad, 19in. LCD and built-in IP remote access capability in a compact housing that stores neatly in a 1U rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. An external USB port, conveniently located on the front of the keyboard panel, enables an optional external mouse to be connected. The B020-U08-19-IP is flash firmware upgradable (firmware upgrade cable included) to ensure compatibility with emerging standards.


Supports Multiple Platforms


The B020-U08-19-IP supports both PS/2 and USB connections (two Tripp Lite P778-006 combo KVM cable kits included). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows®, Mac®, UNIX®, Linux and DOS operating systems.

Simple, Flexible Network Control

The B020-U08-19-IP is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1280 x 1024 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.

Access Servers Anywhere with Built-In IP Remote Access Capability

The B020-U08-19-IP provides secure IP remote access to connected servers/computers via LAN, WAN or Internet without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. Dual bus support permits simultaneous access for one local and one remote user. The LCD incorporates a grayscale option to improve transfer speed in low bandwidth situations. With an external USB 1.1 port, peripheral devices like flash drives and card readers can be shared on the network.

Secure Every Connection

The B020-U08-19-IP offers three levels of password protection (administrator/user/select) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging. Up to 64 user accounts can be created. A message board feature allows logged-in users to communicate with one other and manage port access.


Control Multiple Servers

The B020-U08-19-IP is capable of controlling up to 504 servers/computers by daisy-chaining additional KVMs (Tripp Lite model B022-U16). This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.


Additional KVM Accessories (Sold Separately)

To connect servers/computers to the KVM: one P778-Series PS/2+USB combo KVM cable kit per server/computer is required (two cable kits included; see below). To daisy-chain from the B020-U08-19-IP: additional B022-U16 KVM switches and cable kits; consult the owner's manual for detailed information about daisy-chain configurations.

1-Year Product Warranty

The B020-U08-19-IP is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility. For peace of mind, it comes backed by a one-year warranty.


What's in the Box
  • B020-U08-19-IP Rackmount Console KVM Switch
  • 2 x 6-ft. PS/2+USB Combo KVM Cable Kits (Tripp Lite model P778-006)
  • 1 x Combo Console Cable Kit (USB+PS/2)
  • 1 x RJ11 to DB9 Firmware Upgrade Cable
  • 1 x 6-ft. C13 to 5-15P Power Cord
  • Rackmounting Hardware & Grounding Wire
  • Owner's Manual CD & Quick Start Guide
Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.

8-Port Console IP KVM Switch 1U RM w/ 19" LCD TAA / GSA





Key Features

  • 1U Console KVM Switch with built-in IP access, integrated 19 in. LCD monitor, keyboard and touch pad
  • Mounts from 26" to 38" depth racks
  • P778-Series USB/PS2 Combo KVM cable kits allow you to connect either USB or PS/2 computers...two 6ft kits included with switch
  • Control up to 8 computers on a single KVM switch - expand the number of connected computers to up to 504 by daisy-chaining up to 31 B022-U16 KVM switches
  • Remotely access computers via LAN, WAN or Internet
  • AP Windows and Java Clients allow the KVM to be remotely accessed via the network without going through a browser
  • External USB 1.1 port allows USB peripheral devices such as Flash Drives and Card Readers to be shared amongst connected computers
  • An additional external USB port is conveniently located on the front of the keyboard panel for an optional external mouse
  • 3-level security (Admin, User and Select); up to 64 accounts can be created
  • Panel Array Mode - remotely monitor multiple ports at the same time
  • CD includes a Windows-based log server that records events on the installation and writes them to a searchable database
  • Advanced encryption technologies: 512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4 and 128-bit SSL
  • Supports RADIUS and LDAP/S authentication
  • Network interfaces: TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, Auto Sense and Ping
  • Supports video resolutions up to 1280 x 1024 @ 75Hz (built-in monitor) and 1600 x 1200 @ 60Hz (remote console)
  • Compatible with all major operating systems
  • Constructed of heavy-duty steel housing

System Requirements

  • Computers being connected to the KVM must have a HD15 port, and a USB port or PS/2 Keyboard/Mouse ports
  • Computers that remotely access the KVM should have at least a Pentium III, 1GHz processor
  • Users accessing the KVM with the Windows Client must have a Windows computer with DirectX 7.0 or higher installed. DirectX is available for free download at http://www.microsoft.com/downloads
  • Users accessing the KVM with the Java Client must have Java 2 (1.4.2 or higher) installed on their computer. Java is available for free download at http://www.java.sun.com
  • A network transfer speed of 128Kbps or higher is recommended for best results
  • Supports Internet Explorer, Firefox, Mozilla, Safari, Chrome, Opera and Netscape web browsers
  • Compatible with all major operating systems

Package Includes

  • B020-U08-19-IP 8-Port console KVM switch with built-in IP access
  • (x2) 6 ft. USB/PS2 combo KVM cable kits
  • USB/PS2 combo external console cable kit
  • Grounding wire
  • RJ11 to DB9 firmware upgrade cable
  • Rackmount hardware
  • C13 to 5-15P power cord
  • CD with owner’s manual, quick start guide, and device files
  • Quick start guide
OVERVIEW
# Of Users 1
Port Control Push Buttons, Hotkeys, OSD
Max CPU 504
PC/Server PS/2
Unit Dimensions (HWD/in.) 1.73 x 18.9 x 27
IP Remote Access YES, BUILT IN
INPUT
Recommended Electrical Service 100-250V
Maximum Input Amps (A) 1
PHYSICAL
Unit Dimensions (HWD/cm) 4.39 x 48.00 x 68.58
Unit weight (lbs) 31
Unit weight (kg) 14.06
Housing Color Black
Style 1U Rackmount Console
LCD Monitor (in.) 19
LCD Monitor (cm) 48.26
ENVIRONMENTAL
Storage Temperature Range -20 to 60 C (-4 to 140 F)
Relative Humidity 0 to 80% RH, Non-Condensing
Operating Temperature 0 to 50 C (32 to 122 F)
CONNECTIONS
Ports 8
Daisy-Chain Port 1 x DB25 Male
FEATURES/SPECIFICATIONS
Autoscan (Y,N) Y
Autoscan Duration 1 - 255 seconds
CERTIFICATIONS
Approvals UL, cUL, CE, FCC, RoHS
WARRANTY
Product Warranty Period (Worldwide) 1-year limited warranty
