Tripp Lite

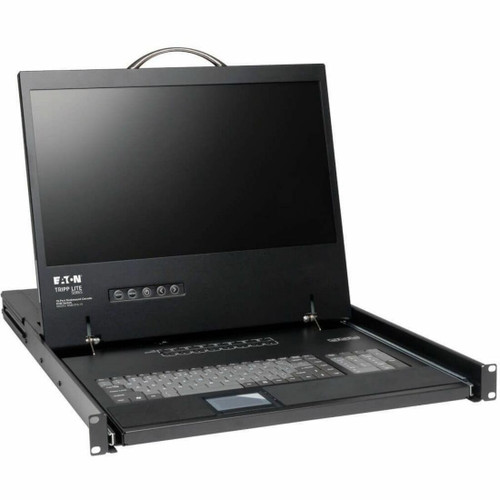

Tripp Lite B040-016-19 KVM Console 16 Port VGA w/19" LCD & Keyboard

SKU:
B040-016-19
Shipping:
Calculated at Checkout
$2,450.00 $1,378.81
(You save $1,071.19 )

Image may not exactly match the product.

$2,450.00 $1,378.81
(You save $1,071.19 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
1 Year
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50

16-Port VGA KVM Switch Rack Console 1URM wtih 19" LCD Monitor, Keyboard, Mouse

Tripp Lite’s B040-016-19 NetController VGA Console KVM Switch is a cost effective and highly flexible system for directly controlling up to 16 computers. Increase the number of connected computers up to 256 by daisy chaining up to 15 Tripp Lite B042 Netcontroller series KVM Switches. Switching between attached servers can be accomplished with on console push buttons, On Screen Display menu, or Hot-Key.Utilizing Tripp Lites P780 series super slim KVM cables ( not much thicker than a standard Cat5 patch Cable ordered seperately), KVM cabling is kept to a minimum and extremely manageable. Cables are double duty, attaching to either PS/2 or USB based computers, without purchasing additional adapters. An additional USB port is provided, allowing attachment of an external mouse to be used in lieu of the provided console touch-pad.The B040 Console KVM switches support a wide variety of software platforms, including: MAC, DOS, Windows 95/98/SE/NT/2000/ME/XP/Server2003/Vista, Linux, Unix, and BSD. Password feature provides additional security to prevent unauthorized access to attached computers. All hardware included for 4-post racking, and designed for easy, one person installation.
16-Port VGA KVM Switch Rack Console 1URM wtih 19" LCD Monitor, Keyboard, Mouse
All-in-One Network Management for Critical Systems

The B040-016-19 offers a complete network management solution. It combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, and 19-in. LCD in compact 1U housing suitable for installation in racks from 27 to 42 inches deep. The B040-016-19 stores neatly in a rack drawer and pulls out when needed. No server-resident software is required, so server performance and reliability are never compromised. Hot pluggable functionality enables servers or computers to be added or removed with no need to power down the KVM switch or disrupt the entire system. Upgradable firmware fine-tunes compatibility with emerging standards.
Supports Multiple Platforms

The B040-016-19 supports both PS/2 and USB connections (Tripp Lite P780-Series combo KVM cable kits required; sold separately). Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. Connect multiple versions of multiple platforms in any combination, including Windows, Mac, Linux and Sun.Tripp Lite's B040-016-19 NetController™ 16-Port VGA Rackmount Console KVM Switch is the smart solution for controlling multiple computers and servers in IT applications. It combines a keyboard, touchpad, 19-in. color LCD and 16-port KVM switch in a 1U, heavy-duty steel rack drawer for compact storage and easy access without compromising control over connected servers. The heavy-duty steel enclosure, high-quality LCD, premium connectors and uncomplicated controls ensure trouble-free operation in demanding high-availability environments. The B040-016-19 can control 16 servers/computers directly, or up to 256 by daisy-chaining additional KVM switches. It is compatible with both PS/2 and USB computers using Tripp Lite P780-Series combo KVM cable kits (available separately), and accepts connection of an IP remote access unit for access to servers/computers via LAN, WAN or Internet.
Simple, Flexible Network Control

The B040-016-19 is designed to ease multi-server management in data centers, server rooms and other high-density environments. BIOS-level access allows network administrators to solve complex problems efficiently and restore service before downtime affects productivity. An advanced on screen display (OSD) with high-resolution VGA video up to 1366 x 768 provides a graphical user interface with management tools including custom port labeling, auto-scanning and panel array mode. Users may also select a connected computer using on-console pushbuttons or keyboard hotkey commands. Two LEDs per KVM port indicate (1) when a computer is connected to a KVM port and powered on, and (2) when a computer is selected.


Control Multiple Computers

The B040-016-19 is capable of controlling up to 256 servers/computers by daisy-chaining additional KVMs (Tripp Lite models B042-008 and B042-016). This gives network managers the flexibility to add capacity when it's needed, accommodating growing data center requirements without disrupting existing equipment.
Access Servers Anywhere with Optional IP Remote Access Capability

With the addition of an optional IP remote access unit (Tripp Lite model B051-000, sold separately), the B040-016-19 provides secure IP remote access to connected servers/computers without requiring additional rack space. IP remote access enables system administration, BIOS-level troubleshooting, GUI application installations, equipment reboots and more to be accomplished from any location using a standard Web browser or multi-platform client software. A modem port provides optional out-of-band dial-up access to equipment when the network or Internet connection goes down. The B051-000 also supports USB virtual media access.Secure Every ConnectionThe B040-016-19 offers two levels of password protection (administrator/user) to prevent unauthorized persons from gaining access to connected servers/computers. IP remote access (if provided by the optional IP remote access unit) is further protected with security features including password protection, advanced encryption, bandwidth-optimized video and detailed activity logging.
Tripp Lite B040-016-19 Key Features:
  • 1U rackmount console with built-in 16-Port KVM switch, 19" LCD, keyboard, and touchpad
  • Directly control up to 16 computers, or increase the number of connected computers to up to 256 by daisychaining up to 15 B042-Series KVM switches
  • Built-in monitor supports video resolutions up to 1366 X 768
  • Use in racks from 27 to 42 inches deep
  • On-Screen Display (OSD) menu for intuitive, easy control of the KVM
  • Password protection and auto-log out features
  • Firmware upgradeable
  • Add IP Remote Access with a Tripp Lite B051-000
  • Hot-swappable: disconnect and reconnect USB computers w/o reboot


What's in the Box
  • B040-016-19 Rackmount Console KVM Switch
  • 1 x HD15 to DB9 Firmware Upgrade Cable
  • 1 x 6-ft. C13 to 5-15P Power Cord
  • Rackmounting Hardware
  • Owner's Manual CD & Quick Start Guide
Additional KVM Accessories (Sold Separately)

To connect servers/computers to the KVM: one Tripp Lite P780-Series combo KVM cable kit per server/computer is required (see below). To daisy-chain from the B040-016-19: additional B042-008 or B042-016 KVM switches and cable kits; consult the owner's manual for detailed information about daisy-chain configurations. For IP remote access: B051-000 IP Remote Access Unit (see below).
Why Choose Tripp Lite?

Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.

16-Port VGA KVM Console w/ 19" LCD Monitor/Keyboard/Touchpad



Key Features

  • 1U rackmount console with built-in 16-Port KVM switch, 19" LCD, keyboard, and touchpad
  • Directly control up to 16 computers, or increase the number of connected computers to up to 256 by daisychaining up to 15 B042-Series KVM switches
  • Built-in monitor supports video resolutions up to 1366 X 768
  • Use in racks from 27 to 42 inches deep
  • On-Screen Display (OSD) menu for intuitive, easy control of the KVM
  • Password protection and auto-log out features
  • Firmware upgradeable
  • Add IP Remote Access with a Tripp Lite B051-000
  • Hot-swappable: disconnect and reconnect USB computers w/o reboot
  • Easy port selection via On Screen Display (OSD), Pushbutton or Hot key commands
  • P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase additional cables or adapters
  • Compatible with all major operating systems
  • Constructed of heavy-duty steel housing

Package Includes

  • B040-016-19 16-Port, 19" console KVM switch
  • 4 ft. HD15 to DB9 firmware upgrade cable
  • C13 to 5-15P power cord
  • External VGA terminator
  • CD with owner's manual and quick start guide
  • Quick start guide
OVERVIEW
# Of Users 1
Console Yes
Port Control Push Buttons, Hotkeys, OSD
Max CPU 256
PC/Server PS/2
Cat5 KVM Switch No
IP Remote Access No
INPUT
Electrical Consumption (Line Mode) 30W / (Standby Mode) 5W
PHYSICAL
Unit Dimensions (HWD/in) 1.75 x 19 x 28
Unit Dimensions (HWD/cm) 4.445 x 48.26 x 71.12
Unit weight (lbs) 34
Unit weight (kg) 15.42
Color Black
Style 1U Rackmount Console
LCD Monitor (in.) 19
LCD Monitor (cm) 48.26
ENVIRONMENTAL
BTUs (Line Mode) 102 BTU/Hr / (Standby Mode) 17.06 BTU/Hr
CONNECTIONS
Ports 16
Computer/Server Ports (x16) HD15 Female
Daisy-Chain Port HD15 Female
Firmware Upgrade Port HD15 Male
CERTIFICATIONS
Approvals TUV (UL), CTUV (cUL), CE, FCC, NOM, RoHS
WARRANTY
Product Warranty Period (Worldwide) 1-year limited warranty
