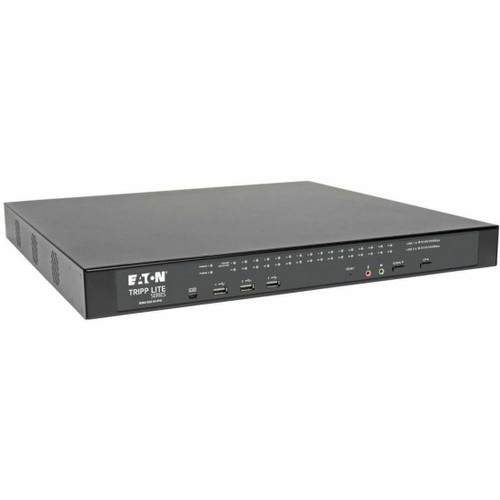

Tripp Lite Cat5 KVM Switch Over IP 32-Port W/Virtual Media 2 Users 1URM TAA - KVM Switch - 32 Ports - Rack-mountable - TAA Compliant - B064-032-01-IPG

SKU:
B064-032-01-IPG
Shipping:
Calculated at Checkout
$5,250.00 $2,953.74
(You save $2,296.26 )

Image may not exactly match the product.

$5,250.00 $2,953.74
(You save $2,296.26 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 3 years
Installation Type:
Rack-mountable
Device Type:
KVM switch
Product Line:
Tripp Lite
Model:
Cat5 KVM Switch Over IP 32-Port w/Virtual Media 2 Users 1URM TAA
Family:
KVM
Ports Qty:
32
Rack Mounting Kit:
Included
KVM Local Users Qty:
1 local user
Server Connection Via Twisted Pair:
CAT5
KVM IP Users Qty:
1 IP user
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
This NetDirector Cat5 KVM switch offers BIOS-level access to multiple computers and servers in a complex, demanding IT environment. The B064-032-01-IPG provides complete control of up to 32 computers and/or servers directly, including blade servers, from a single monitor, USB keyboard and USB mouse. Dual redundant power supplies confirm the unit will continue running in the event one power supply fails, ensuring 24/7 reliability. A Laptop USB Console (LUC) port allows direct connection of a laptop for easy console operation of the KVM switch.
The B064-032-01-IPG offers a comprehensive, cost-effective network management solution that installs in 1U of space in an EIA-standard 19-inch rack using the included hardware. No server-resident software is required, so server performance and reliability are never compromised. Flash-upgradable firmware over an Ethernet network fine-tunes compatibility with emerging standards.
The B064-032-01-IPG supports all major server platforms and VT100-based serial devices. Because compatibility is based on common hardware standards, rather than system software dependencies, almost any platform can be accommodated. Supported web browsers for users who log in remotely include Internet Explorer, Firefox, Mozilla, Safari, Opera and Netscape Navigator.
This Cat5 KVM switch is designed to ease multi-server management in data centers, server rooms and other high-density environments. Built-in IP capability allows up to two users - one local and one remote - to access the network independently and simultaneously. An optional dial-in connection (modem port) is provided to ensure access in situations when the KVM switch is not available over the primary network. You may also select a connected computer using on-console pushbuttons, GUI (graphical user interface), OSD (on-screen display) or keyboard hotkey commands. An LED per KVM port indicates when a computer is connected to the port, when it is powered on and when it is selected.
The advanced OSD with high-resolution video up to 1920 x 1200 (at 60 Hz) with 24-bit color depth provides a GUI with management tools, including custom port labeling, auto-scanning and panel array mode. The OSD may be set to display in English, German, Russian, Japanese, traditional Chinese and simplified Chinese.
PS/2 and USB console ports are included. Only one keyboard/mouse combination may be connected at a time.
The B064-032-01-IPG supports IPv4, Link Local IPv6 Address and IPv6 Stateless Autoconfiguration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method).
The B064-032-01-IPG offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Remote authentication support is provided via RADIUS, LDAP, LDAPS and Active Directory. The B064-032-01-IPG also incorporates advanced encryption technologies: 1024-bit RSA, 56-bit DES, 256-bit AES and 128-bit SSL. It also supports high-grade FIPS 140-2 level 1 security standards.
Virtual Media capability allows any computer connected to the KVM via a B055-001-USB-V2, B055-001-UDP, B055-001-UDV or B055-001-UHD server interface unit to access DVD/CD drives, flash drives and other storage media from a remote computer, as if it were directly connected. This allows administrators to perform file transfers, install software and perform diagnostics across a network.
Product Description Eaton Tripp Lite series Cat5 KVM Switch Over IP 32-Port w/Virtual Media 2 Users 1URM TAA - KVM switch - 32 ports - rack-mountable - TAA Compliant
Device Type KVM switch - 32 ports - CAT5
Enclosure Type Rack-mountable 1U
Subtype KVM
Ports 32 x KVM port(s)
KVM Users Qty 1 local user, 1 IP user
Features IPv6 support, firmware upgradable, Virtual Media support, DHCP server, reset button, IPv4 support, Auto Scan Mode, metal housing, administrator's password, Pushbutton/Hotkey switching, LUC port
Power AC 120/230 V (50/60 Hz) 1 A
Power Redundancy Yes
Dimensions (WxDxH) 17 in x 16 in x 1.7 in
Weight 7.76 lbs
Color Black
Pricing Type Government GSA
TAA Compliant Yes
Manufacturer Warranty 3-year warranty
Designed For P/N: N001-020-BL, N262-035-AQ
General
Device Type KVM switch - 32 ports
Enclosure Type Rack-mountable 1U
Subtype KVM
Ports 32 x KVM port(s)
KVM Local Users Qty 1 local user
KVM IP Users Qty 1 IP user
Server Connection Via Twisted Pair CAT5
Local User Connection Via Twisted Pair CAT5
Keyboard / Mouse Interface PS/2, USB
Max Cascading Depth 512
Encryption Algorithm DES, 256-bit AES, 128-bit SSL, FIPS 140-2 Level 1, 1024-bit RSA
Authentication Method RADIUS, LDAP, Active Directory
Max Resolution 1920 x 1200 @ 60 Hz
Features IPv6 support, firmware upgradable, Virtual Media support, DHCP server, reset button, IPv4 support, Auto Scan Mode, metal housing, administrator's password, Pushbutton/Hotkey switching, LUC port
Status Indicators Power, select, link/activity/speed, online
Expansion / Connectivity
Interfaces 2 x LAN RJ-45
3 x USB 2.0 Type A
32 x KVM RJ-45
1 x modem RJ-45
2 x keyboard (USB) / mouse (USB) Type A console
1 x VGA HD-15 console
1 x microphone mini-jack console
1 x headphones mini-jack console
1 x mini-USB Type B LUC
1 x DVI-D output 24+1 pin digital DVI console
Power
Power Device Internal power supply
Installed Qty 2
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Electric Current Required 1 A
Miscellaneous
Color Black
Included Accessories Foot pad set, 2 power cords (C5 to NEMA 5-15P), USB-PS/2 combo console cable kit
Cables Included 1 x serial adapter
Ground cable
Rack Mounting Kit Included
Compliant Standards FCC, RoHS, REACH
Pricing Type Government GSA
TAA Compliant Yes
Software / System Requirements
Software Included NetDirector-AXS Management Software
Dimensions & Weight
Width 17 in
Depth 16 in
Height 1.7 in
Weight 7.76 lbs
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 0 - 80% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 140 °F
Compatibility Information
Designed For P/N: N001-020-BL, N262-035-AQ
