Image may not exactly match the product.

Tripp Lite

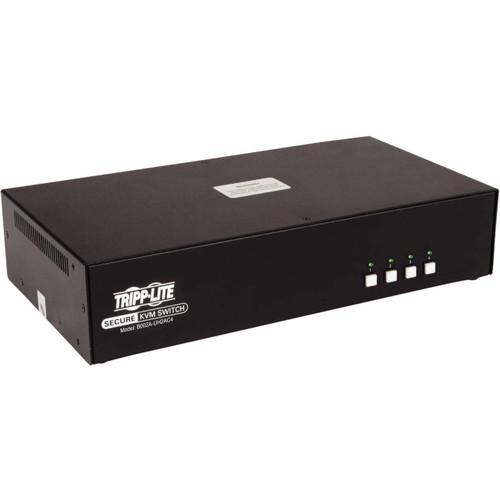

Tripp Lite Secure KVM Switch 4-Port Dual-Monitor HDMI 4K NIAP CAC PP3.0 TAA - KVM / Audio / USB Switch - 4 Ports - TAA Compliant - B002A-UH2AC4

SKU:
B002A-UH2AC4
Shipping:
Calculated at Checkout
$950.00 $534.64
(You save $415.36 )

Image may not exactly match the product.

$950.00 $534.64
(You save $415.36 )
Availability:
Currently out of stock, pre-order may be available

Condition:
New
Warranty Information
Limited Warranty - 3 years
Installation Type:
Desktop
Device Type:
KVM / audio / USB switch
Product Line:
Tripp Lite
Model:
Secure KVM Switch 4-Port Dual-Monitor HDMI 4K NIAP CAC PP3.0 TAA
Family:
KVM
Ports Qty:
4
KVM Local Users Qty:
1 local user
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
  • 4-port HDMI KVM switch is ideal for applications that demand secure networks
    This four-port KVM switch is recommended for any government, military, financial or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel, making it impossible for data to be transferred between connected computers through the KVM. The dual-monitor switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.
  • NIAP PP3.0 certified to meet top information assurance standards
    This KVM switch is certified by NIAP (National Information Assurance Partnership), which is operated by the National Security Agency (NSA), to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 3.0. Discrete processing paths to each connected system prevent data leakage, transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only.
  • Top-of-the-line security features keep your data safe
    Special protection prevents re-programming of firmware, so the switch's KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission, ensuring no information is left stored. Plus, you can only access connected computers via buttons on the switch's panel. Other port-switching methods, such as On-Screen Display (OSD) and Hotkey Commands, have been excluded to further ensure data integrity.
  • CAC port supports biometric and other smart card readers
    The Common Access Card port supports smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. You may assign and register specific peripherals to the CAC port, providing a secure connection for user authentication.
  • Anti-tampering protection prevents physical breeches
    If the housing is opened, internal anti-tamper switches will disable the unit, causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering.
  • Maintains constant keyboard and mouse emulation for smooth no-delay switching
    Full USB device filtering ensures support for keyboard and mouse only. This KVM switch also supports secure video emulation and EDID learning, which prevents unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations, shielding your computers from potential vulnerabilities.
  • TAA-compliant for GSA schedule purchases
    The B002A-UH2AC4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

This four-port KVM switch is recommended for any government, military, financial or healthcare environment where tight security of sensitive data is of utmost importance in a world of constantly changing cyberthreats. Each KVM port is an electronically isolated channel, making it impossible for data to be transferred between connected computers through the KVM. The dual-monitor switch supports crystal-clear Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz.
This KVM switch is certified by NIAP (National Information Assurance Partnership), which is operated by the National Security Agency (NSA), to the latest Common Criteria Protection Profile for Peripheral Sharing Switches Version 3.0. Discrete processing paths to each connected system prevent data leakage, transfer and crosstalk between adjacent ports. Peripheral isolation enables data to flow from device to host only.
Special protection prevents re-programming of firmware, so the switch's KVM logic remains unaltered. The keyboard buffer clears automatically after data transmission, ensuring no information is left stored. Plus, you can only access connected computers via buttons on the switch's panel. Other port-switching methods, such as On-Screen Display (OSD) and Hotkey Commands, have been excluded to further ensure data integrity.
The Common Access Card port supports smart cards, scanners and biometric readers, including fingerprint readers, to bolster security. You may assign and register specific peripherals to the CAC port, providing a secure connection for user authentication.
If the housing is opened, internal anti-tamper switches will disable the unit, causing it to become inoperable and the front-panel LEDs to flash repeatedly. Seals on the enclosure will provide visual evidence of tampering.
Full USB device filtering ensures support for keyboard and mouse only. This KVM switch also supports secure video emulation and EDID learning, which prevents unwanted data from transmitting through the DDC lines. Both keyboard/mouse and video emulation controllers restrict discovery of newly connected peripherals or monitors during switching operations, shielding your computers from potential vulnerabilities.
The B002A-UH2AC4 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Product Description Tripp Lite Secure KVM Switch 4-Port Dual-Monitor HDMI 4K NIAP CAC PP3.0 TAA - KVM / audio / USB switch - 4 ports - TAA Compliant
Device Type KVM / audio / USB switch - 4 ports
Subtype KVM
Ports 4 x KVM / audio / USB
KVM Users Qty 1 local user
Features On-Screen Display, 36-bit Deep Color support, anti-tampering protection, dual display support
Compliant Standards USB 1.1
Power AC 120/230 V (50/60 Hz)
Dimensions (WxDxH) 12.6 in x 6.7 in x 2.7 in
Weight 4.19 lbs
Color Black
Localization North America
TAA Compliant Yes
Manufacturer Warranty 3-year warranty
Designed For P/N: P782-006-HA, P782-010-HA
General
Device Type KVM / audio / USB switch - 4 ports
Enclosure Type Desktop
Subtype KVM
Ports 4 x KVM / audio / USB
KVM Local Users Qty 1 local user
Keyboard / Mouse Interface USB
Max Resolution 3840 x 2160 @ 30 Hz
Features On-Screen Display, 36-bit Deep Color support, anti-tampering protection, dual display support
Compliant Standards USB 1.1
Status Indicators Status
Expansion / Connectivity
Interfaces 8 x HDMI input
4 x keyboard (USB) / mouse (USB) Type B
4 x USB input Type B common access card (CAC)
4 x audio input mini-jack
1 x audio output mini-jack
2 x HDMI output
2 x keyboard (USB) / mouse (USB) Type A
1 x USB output Type A common access card (CAC)
Power
Power Device External power adapter
Power Provided 12 V - 2 A
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
Color Black
Compliant Standards UL, cUL, FCC, RoHS, EDID compatible, NIAP PP 3.0
TAA Compliant Yes
Localization North America
Dimensions & Weight
Width 12.6 in
Depth 6.7 in
Height 2.7 in
Weight 4.19 lbs
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 0 - 80% (non-condensing)
Min Storage Temperature -4 °F
Max Storage Temperature 140 °F
Compatibility Information
Designed For P/N: P782-006-HA, P782-010-HA
