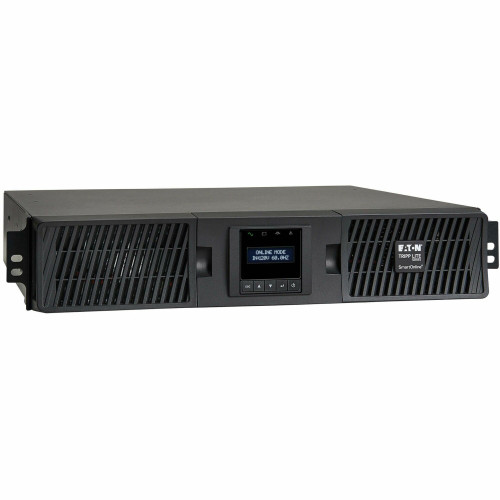

Tripp Lite SU1000RTXLCD2U SmartOnline 1kVA Double-Conv UPS RM/TWR

SKU:
SU1000RTXLCD2U
Shipping:
Calculated at Checkout
$1,506.96 $848.09
(You save $658.87 )

Image may not exactly match the product.

$1,506.96 $848.09
(You save $658.87 )
In Stock
In-Stock
Availability:
In Stock. Ships Same Business Day If Ordered Before 3pm PT

Condition:
New
Warranty Information
2 Years
View More

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 7 to 11 of 50

SU1000RTXLCD2U SmartOnline® 1000VA Double-Conversion Rack/Tower Sine Wave UPS with Expandable Runtime, Network Slot and LCD

POWER PROTECTION AND EXPANDABLE BATTERY BACKUP
for servers and network hardware

This on-line, double-conversion UPS system protects critical network systems from damage, downtime and data loss.
  • True on-line, double-conversion operation delivers pure sine wave output, precise voltage regulation and isolation from power problems.
  • Expandable battery backup supports critical systems during outages.
  • LCD/LED control panel displays power conditions and permits easy access to settings.
  • Network card slot supports optional remote access and network management.
  • USB and DB9 serial ports connect to computers for power management.
  • 2-year warranty and $250,000 insurance reflect commitment to reliability.
  • ENERGY STAR® certified efficiency and economy mode operation reduce operating costs.
SU1000RTXLCD2U SmartOnline® 1000VA Double-Conversion Rack/Tower Sine Wave UPS with Expandable Runtime, Network Slot and LCD
Why is this UPS a Good Investment?

Why is this UPS a Good Investment?

The success of your organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and hazards lurking inside your own walls, your servers and network hardware are under attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.

The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartOnline UPS system. True on-line double conversion is the highest level of power protection available. It provides precise voltage regulation, delivers continuous sine wave output and isolates equipment from power problems. This UPS system also has a high power factor, allowing you to connect a heavier load without overloading the UPS.

Common Applications

Protect Mission-Critical Servers and Network Hardware
Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Cloud Platform Servers, Media Servers, VoIP Servers, Converged Infrastructure, Network Switches, PoE Switches,
Firewalls, Network Appliances, Bridges, Gateways, Routers


Protect Equipment with Active PFC Power Supplies
Active PFC power supplies found in many devices require sine wave power.

Expandable Battery Backup

  • Half-Load Runtime: This UPS system will support a 50% load (450W) for up to 14 minutes using the included batteries.
  • Extended Runtime: This UPS system allows you to connect one or more optional external battery packs to provide additional backup runtime. Some external battery packs can also be daisy-chained, allowing you to scale runtime to match almost any application requirement.
  • Hot-Swappable Batteries: You can add or replace batteries without turning off the UPS system and disrupting the operation of connected equipment.

On-Line, Double-Conversion Operation

This UPS system provides the highest level of power protection available:
  • Continuous on-line, double-conversion operation provides precise voltage regulation and sine wave output. It isolates connected equipment from most power problems, including blackouts, brownouts, overvoltages, transient voltages surges, electromagnetic (EMI/RFI) line noise, harmonic distortion, electrical impulses and frequency variations.
  • Zero transfer time to battery prevents malfunctions and reboots of sensitive equipment potentially caused by the transition from line power to battery-derived power during outages.
  • Fault-tolerant automatic bypass maintains utility output and avoids downtime during a variety of fault and overload conditions.

Flexible Management Options

There are several ways to manage this UPS system:
  1. Use the multifunction LCD screen for comprehensive local management.
  2. Use the USB port with your computer's built-in power management features.
  3. Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
  4. Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
This UPS system also has two switched outlet banks, allowing you to reboot locked devices remotely or turn off nonessential loads during extended outages to provide additional runtime.

Multifunction LCD/LED Control Panel

The convenient LCD/LED control panel provides easy access to detailed UPS settings and information. The illuminated LCD screen displays a variety of helpful data, including input/output voltage, input/output frequency, output load percentage, output load wattage, power status, battery status, operating mode, battery voltage, battery capacity, estimated backup runtime remaining and power consumption. An LED block diagram supplements the LCD screen by indicating the UPS operating mode and power conditions. The control panel also allows you to change the UPS system's operating mode and other settings. The control panel provides more information and greater control than comparable models, allowing you to diagnose and respond to power problems at the rack before they cause downtime. If you decide to install the UPS system in a tower configuration, you can rotate the LCD to match.

Eco-Friendly Design

  • Economy Mode: This UPS system provides user-selectable economy mode operation to increase efficiency and cut operating costs. In economy mode, the UPS system suspends double conversion and operates with increased efficiency as long as input power quality is satisfactory. If input power quality becomes unsatisfactory, the UPS system immediately resumes double conversion until power quality returns to normal.
  • ENERGY STAR: This UPS system is independently certified to use less energy and cause fewer of the emissions that contribute to climate change.
  • User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
  • RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.

Dependable Service from an Industry Leader

Service and Support
  • 2-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
  • $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
  • Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
Industry Leader
  • Over 90 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
  • Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
  • Third-Party Safety Testing and ISO 9001 Certification

Key Specifications

Model: SU1000RTXLCD2U
Load Capacity:
1 kVA (900 W)
Power Factor: 0.9
Nominal AC Input: 100V; 110V; 115V; 120V; 127V (50/60 Hz)
Nominal AC Output: 100V; 110V; 115V; 120V; 127V (50/60 Hz)
Output Voltage Regulation (Line Mode): +/- 2%
AC Outlets: 6 x 5-15R
Switched Outlet Banks: Two switchable single-outlet 5-15R load banks
Output Waveform (AC Mode): Pure Sine Wave
Output Waveform (Battery Mode): Pure Sine Wave
Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
Half-Load Runtime (Included Batteries): 14 min. (450 W Load)
User-Replaceable Battery: Yes (RBC24V-LCD)
Expandable Battery Runtime:
Yes (Requires Optional External Battery Pack)
Compatible External Battery Packs:
BP24V15RT2U (Limit 1); BP24V28-2U (Limit 1); BP24V70-3U (Multi-Pack Compatible); BP24V36-2US (Multi-Pack Compatible)
Data Line Protection:
Tel/Network (1 Line)
Communications:
USB Port (HID-Compliant); Serial Port (DB9); Contact Closure; Network Card Slot; EPO
Primary Form Factor: 2U Rack (Supports 4-post rack installation with included kit. Add 2POSTRMKITWM for 2-post rack or wall-mount installation. Add 2-9USTAND for tower installation.)
Dimensions: 3.5 x 17.5 x 12.5 in. (8.9 x 44.5 x 31.8 cm)
Unit Weight: 29 lb. (13.2 kg)
Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC (EMI); RoHS; ENERGY STAR
Product Warranty (Worldwide): 2-Year Limited Warranty
Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual

ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency. ENERGY STAR products are third-party certified by an EPA-recognized Certification Body. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.

1kVA On-Line Double-Conversion UPS, 2U Rack/Tower, Interactive LCD display





Key Features

  • Tripp Lite SU1000RTXLCD2U 1000VA / 1kVA / 900W on-line, double-conversion 2U rack / tower UPS
  • Selectable 100/110/120/127V output (120V factory preset)
  • NEMA 5-15P input, 6 NEMA 5-15R outlets
  • Two switched outlets support remote reboot or programmable load shedding options
  • Supports 2% output voltage regulation and zero transfer time in double conversion mode
  • Economy mode option offers enhanced efficiency, reduced power consumption and lower BTU emissions
  • 14 minutes runtime at 50% load (450W) and 4.8 minutes at 100% load (900W) with internal batteries
  • BP24V15RT2U (limit 1), BP24V28-2U (limit 1), BP24V70-3U (multi-pack compatible) and BP24V36-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
  • LCD interface reports operating mode plus 9 selectable screens of UPS data (Load % & kW, Load % & kVA, Power factor, Input volts & Hz, Output volts & Hz, Battery volts and charge %, Minutes runtime, Capacity remaining, Kw/hr. consumption)
  • LCD interface also supports 16 screens of UPS configuration and setup options
  • 4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack / wallmount installation, Optional 2-9USTAND enables tower placement
  • Single line TEL / Network surge suppression
  • Electronic bypass maintains utility output during a variety of UPS fault conditions
  • Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
  • Frequency regulation / conversion mode offers generator-compatible frequency correction or conversion of frequency from 50 to 60Hz or 60 to 50Hz
  • Built-in USB, RS-232, contact-closure and optional SNMPWEBCARD accessory monitoring options
  • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
  • Included PowerAlert UPS monitoring software

Package Includes

  • SU1000RTXLCD2U UPS System
  • PowerAlert Software with USB, Serial & EPO cabling
  • 4 post rackmount installation kit
  • Instruction manual
OUTPUT
Output Volt Amp Capacity (VA) 1000
Output kVA capacity (kVA) 1
Output Watt Capacity (watts) 900
Output power factor 0.9
Output Capacity Details ON LINE MODE: Maximum output capacity ratings are reduced
for some nominal voltage settings (127/120/115/110V 900 watts,
100V 810 watts). FREQUENCY REGULATION / CONVERSION
MODE: Maximum output ratings are reduced in frequency regulation
/ conversion mode (127/120/115/110V 630 watts / 100V 567 watts).
Crest Factor 3:01
Nominal Output Voltage(s) Supported 100V; 110V; 115V; 120V; 127V
Nominal Voltage details 120V factory-default nominal voltage
Frequency compatibility 50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Frequency compatibility details ON LINE MODE: Output frequency is automatically configured to
match nominal input frequency on startup; Output matches input
frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz
when input frequency exceeds +/-5Hz of nominal. UPS switches to
battery mode when input frequency is below 40Hz or above 70Hz.
FREQUENCY REGULATION / CONVERSION MODE: Output is
regulated to +/-0.05Hz of selected output frequency input is 40 to 70Hz;
UPS switches to battery mode when input frequency is below 40Hz or
above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz.
Output voltage regulation (line mode) +/- 2%
Output voltage regulation (Economy line mode) +/- 10%
Output voltage regulation (Battery mode) +/- 3%
Built-in UPS output receptacles 6 5-15R outlet(s)
Built-in controllable switched load banks Two switchable single-outlet 5-15R load banks
Output AC waveform (AC mode) Pure Sine wave
Output AC waveform (battery mode) Pure Sine wave
INPUT
Rated input current (at maximum load) 8.6A
Nominal Input Voltage(s) Supported 100V AC; 110V AC; 115V AC; 120V AC; 127V AC
Nominal input voltage description 120V factory default
UPS input connection type 5-15P
Input circuit breaker 15A
UPS Input cord length (ft.) 10
UPS Input cord length (m) 3
Recommended Electrical Service 15A 120V
Phase Single-Phase
BATTERY
Full load runtime (minutes) 4.8 min. (900w)
Half load runtime (minutes) 14 min. (450w)
Expandable battery runtime Extended runtime supported via optional external battery packs
External battery pack compatibility BP24V15RT2U (limit 1); BP24V28-2U (limit 1);
BP24V70-3U (multi-pack compatible);
BP24V36-2US (multi-pack compatible)
Expandable runtime description Some external battery configurations require the use of Tripp Lite's
External Battery Configuration Software, see manual for details
DC system voltage (VDC) 24
Battery recharge rate (included batteries) Less than 3 hours recharge to 90%
Replacement battery cartridge
(internal UPS battery replacement)
RBC24V-LCD
Battery Access Front panel battery access
Battery replacement description Hot-swappable, user replaceable batteries
VOLTAGE REGULATION
Voltage regulation description Online, double-conversion power conditioning maintains 2%
output voltage regulation during brownouts and overvoltages
Overvoltage correction Corrects overvoltages to 150V (0-100% load)
Undervoltage correction Corrects undervoltages to 100V at full load (90V at 100V nominal)
Severe undervoltage correction Corrects brownouts to 70V (70% load) & 55V (33% load)
LEDS ALARMS & SWITCHES
LED Indicators 7 front panel LEDs indicate line power availability, AC to DC conversion,
battery mode operation, inverter mode, eco mode operation, bypass
mode operation and AC output status
Front panel LCD display Front panel LCD information and configuration screen offers detailed
UPS and site power status and operating data, plus configuration of
voltage, frequency, operating mode, alarm function and a variety of
additional options
Alarms Audible alarm indicates UPS startup, power-failure, low-battery,
overload, UPS fault and remote shutdown conditions
Alarm cancel operation Power-fail alarm can be temporarily silenced using alarm-cancel switch;
silent mode alarm configuration option available
Switches 2 switches control off/on power status and alarm-cancel operation;
2 additional scroll-down and scroll-up / select options enable LCD
status viewing and configuration options
SURGE / NOISE SUPPRESSION
UPS AC suppression joule rating 570
UPS AC suppression response time Instantaneous
UPS Dataline suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
EMI / RFI AC noise suppression Yes
PHYSICAL
Installation form factors
supported with included accessories
4 post 19 inch rackmount
Installation form factors
supported with optional accessories
2 post rackmount (2POSTRMKITWM);
Wallmount (2POSTRMKITWM); Tower (2-9USTAND)
Primary form factor Rackmount
UPS / Power Module dimensions
in primary form factor
(height x width x depth / inches)
3.5 x 17.5 x 12.5
UPS / Power Module dimensions
in primary form factor
(height x width x depth / cm)
8.9 x 44.4 x 31.8
Rack Height 2U
Secondary form factor Tower (requires 2-9USTAND)
UPS / Power Module weight (lbs) 2900%
UPS / Power Module weight (kg) 13.2
UPS Shipping dimensions
(height x width x depth / inches)
9.5 x 20 x 24
UPS Shipping dimensions
(height x width x depth / cm)
24.1 x 50.8 x 61
Shipping weight (lbs) 4150%
Shipping weight (kg) 18.8
Cooling method Fan
UPS housing material Steel
ENVIRONMENTAL
Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Relative Humidity 0 to 95%, non-condensing
AC mode BTU / hr. (full load) 34100%
AC economy mode BTU / hr. (full load) 23000%
Battery mode BTU / hr. (full load) 585
AC economy mode efficiency rating (100% load) 93%
Operating Elevation (ft.) 0-3000m / 0-10,000 ft.
Audible Noise 45 dBA at 1m front side
COMMUNICATIONS
Communications interface USB (HID enabled); DB9 Serial; Contact closure;
EPO (emergency power off); Slot for SNMP/Web interface
Network monitoring port description Supports detailed monitoring of UPS and site power conditions;
DB9 port supports RS232 and contact closure communications
PowerAlert software Included
Communications cable USB and DB9 cabling included
WatchDog compatibility Supports Watchdog application, OS and
hard-reboot restart options for remote applications
LINE / BATTERY TRANSFER
Transfer time Zero (0 milliseconds) in double-conversion mode;
4 milliseconds economy mode
Low voltage transfer to battery power (setpoint) 100V at full load (90V full load at 100V nominal setting);
70V at 70% load; 55V at 33% load
High voltage transfer to battery power (setpoint) 150
SPECIAL FEATURES
Cold Start (startup in battery
mode during a power failure)
Cold-start operation supported
High availability UPS features Automatic inverter bypass; Hot swappable batteries
Green & high efficiency features High efficiency economy mode operation; Individually controllable
load banks; Schedulable daily hours of economy mode operation
CERTIFICATIONS
UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15
Category B (EMI); ROHS (Restriction of Hazardous Substances);
ENERGY STAR Qualified
WARRANTY
Product Warranty Period (Worldwide) 2-year limited warranty
Connected Equipment Insurance
(U.S., Canada & Puerto Rico)
$250,000 Ultimate Lifetime Insurance

Specs Overview

Detailed Specs
