Ubiquiti

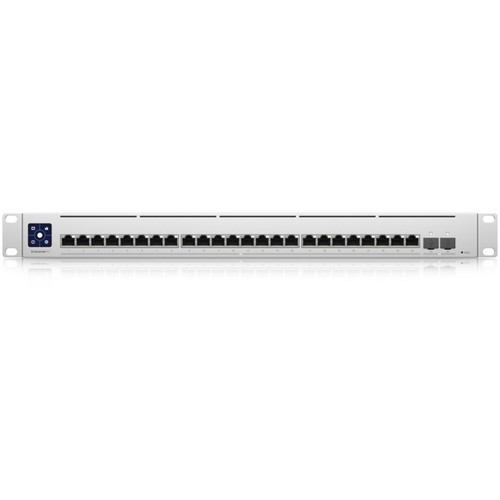

Ubiquiti UniFi Enterprise XG 24 - Switch - 24 Ports - Managed - Rack-mountable - USW-ENTERPRISEXG-24

SKU:
USW-ENTERPRISEXG-24
Shipping:
Calculated at Checkout
$1,299.00 $1,212.68
(You save $86.32 )

Image may not exactly match the product.

$1,299.00 $1,212.68
(You save $86.32 )
Availability:
This product is currently only available for pre-order

Condition:
New
Installation Type:
Rack-mountable
Device Type:
Switch
Product Line:
Ubiquiti UniFi Enterprise
Model:
XG 24
Family:
10 Gigabit Ethernet
Ports Qty:
24
Managed:
Yes
View More
Out of Stock

Out of Stock.

Request a quote for re-stock information.

Done shopping? You can create a PDF of your cart for later or for your purchasing dept! Details at checkout.

Hear What Our Customers Are Saying

slide 6 to 10 of 50
USW-EnterpriseXG-24 is a configurable Layer 3 switch suited for enterprise networks demanding next-in-class performance. It offers (24) 10GbE RJ45 Ethernet ports, and (2) 25GbE SFP28 ports, providing 25GbE fiber uplinks to your network. Features include a 1.3" touchscreen, single-row RJ45 port layout for easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS) support for intelligent protection from internal PSU interruption or failure.
Product Description Ubiquiti UniFi Enterprise XG 24 - switch - 24 ports - managed - rack-mountable
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 24 x 100/1000/2.5G/5G/10GBase-T + 2 x 25 Gigabit SFP28 (uplink)
Performance Non-blocking switching throughput: 290 Gbps
Switching capacity: 580 Gbps
Forwarding rate: 431.52 Mpps
Features Firmware upgradable
Power AC 100-240/ DC 11.5 V (50/60 Hz)
Dimensions (WxDxH) 17.4 in x 11.2 in x 1.7 in
Weight 10.08 lbs
General
Device Type Switch - 24 ports - L3 - managed
Enclosure Type Rack-mountable
Subtype 10 Gigabit Ethernet
Ports 24 x 100/1000/2.5G/5G/10GBase-T + 2 x 25 Gigabit SFP28 (uplink)
Performance Non-blocking switching throughput: 290 Gbps
Switching capacity: 580 Gbps
Forwarding rate: 431.52 Mpps
Features Firmware upgradable
Built-in Devices 1.3" touch screen display
Status Indicators Link/activity
Expansion / Connectivity
Interfaces 24 x 100/1000/2.5G/5G/10GBase-T RJ-45
2 x 1/10/25Gbit LAN SFP28 uplink
Power
Power Device Internal power supply
Voltage Required AC 100-240/ DC 11.5 V (50/60 Hz)
Power Consumption Operational 100 Watt
Miscellaneous
Included Accessories Rack mounting ears
Compliant Standards IC, FCC
Dimensions & Weight
Width 17.4 in
Depth 11.2 in
Height 1.7 in
Weight 10.08 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 104 °F
Humidity Range Operating 10 - 90% (non-condensing)
